Digital Electro Mechanical Universal Testing Machine (single Ball Screw)

Name: Digital Electro Mechanical Universal Testing Machine (single Ball Screw)
Brand: OM ENGINEERING INSTRUMENTS
Price: 1 INR
Availability: InStock

Get a Price/Quote

MOQ : 1 Number

Digital Electro Mechanical Universal Testing Machine (single Ball Screw) Specification

Voltage
AC220 Volt (v)

Power
AC220±5%, 50-60Hz Volt (v)

Dimension (L*W*H)
425x400x1315 Millimeter (mm)

Machine Weight
90 Kilograms (kg)

Digital Electro Mechanical Universal Testing Machine (single Ball Screw) Trade Information

Minimum Order Quantity
1 Number

Supply Ability
1 Number Per Week

Delivery Time
1 Week

Main Export Market(s)
Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa

Main Domestic Market
All India

About Digital Electro Mechanical Universal Testing Machine (single Ball Screw)

Features

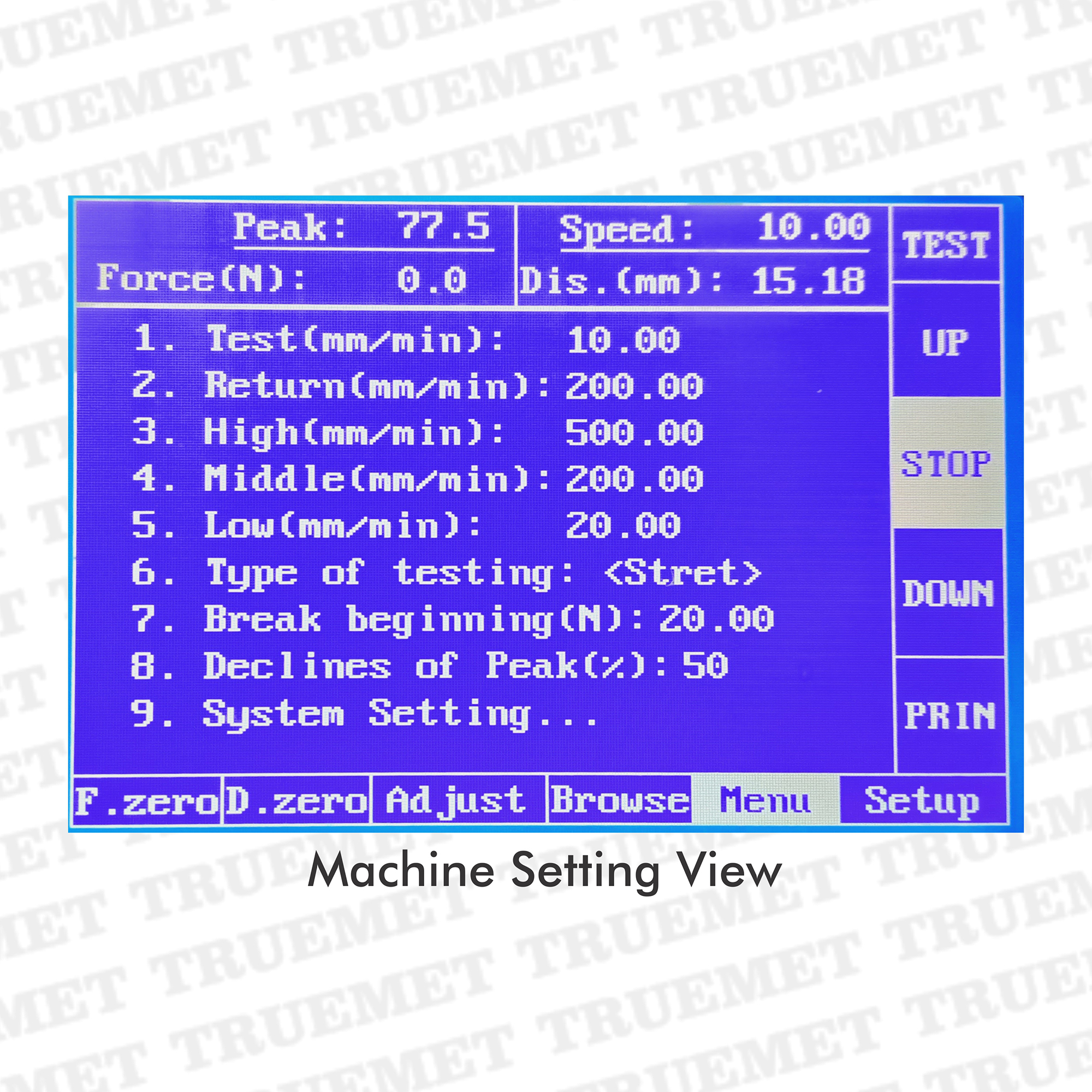

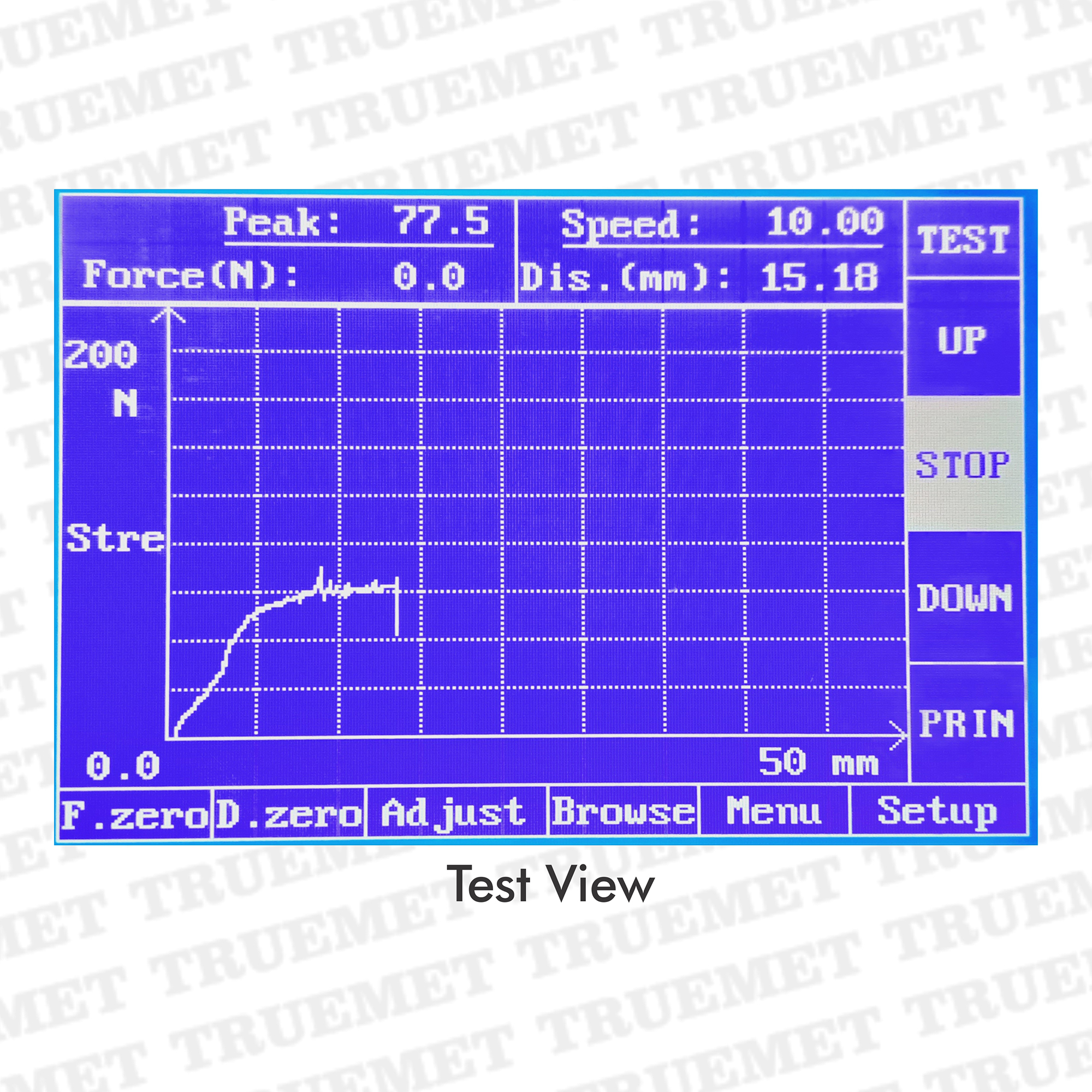

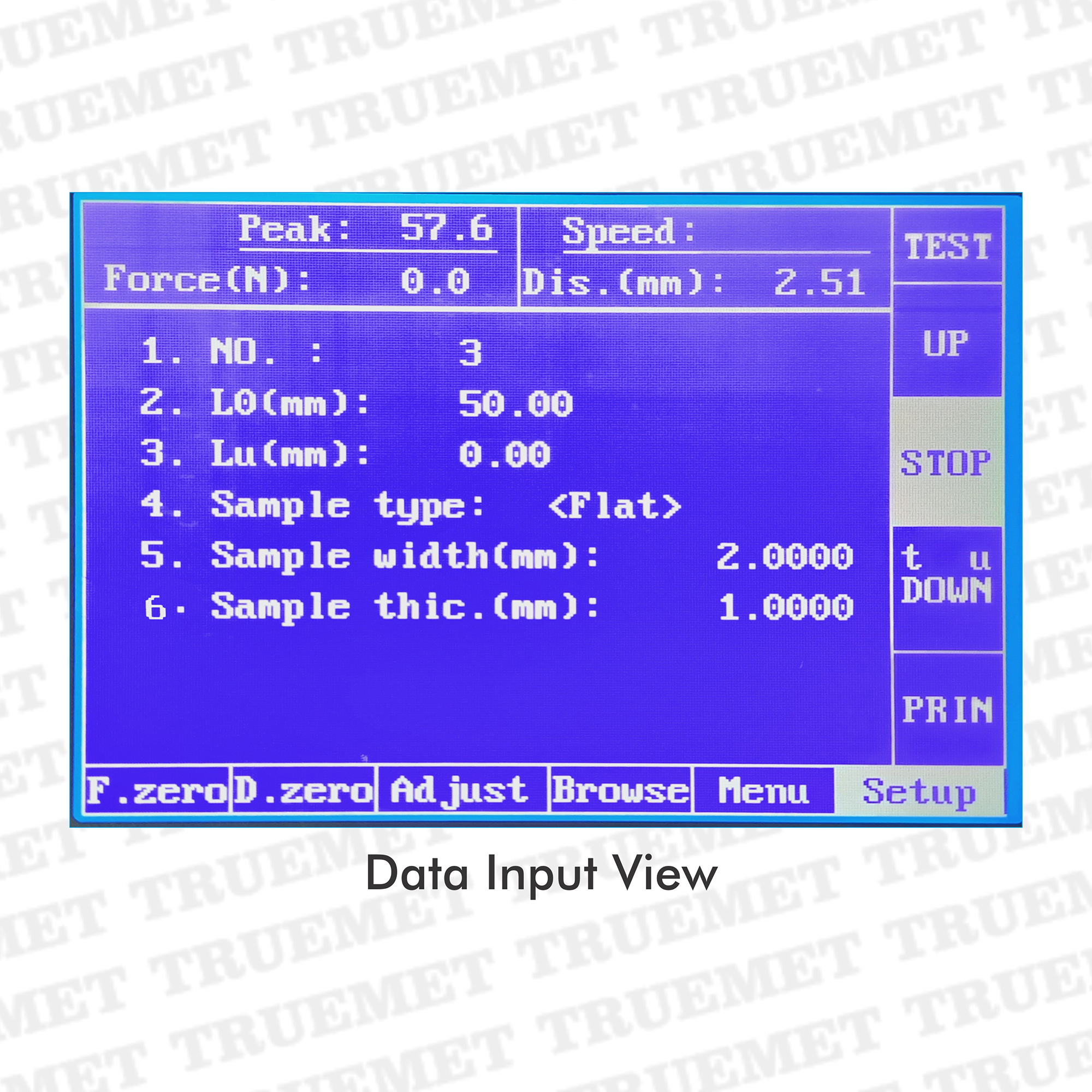

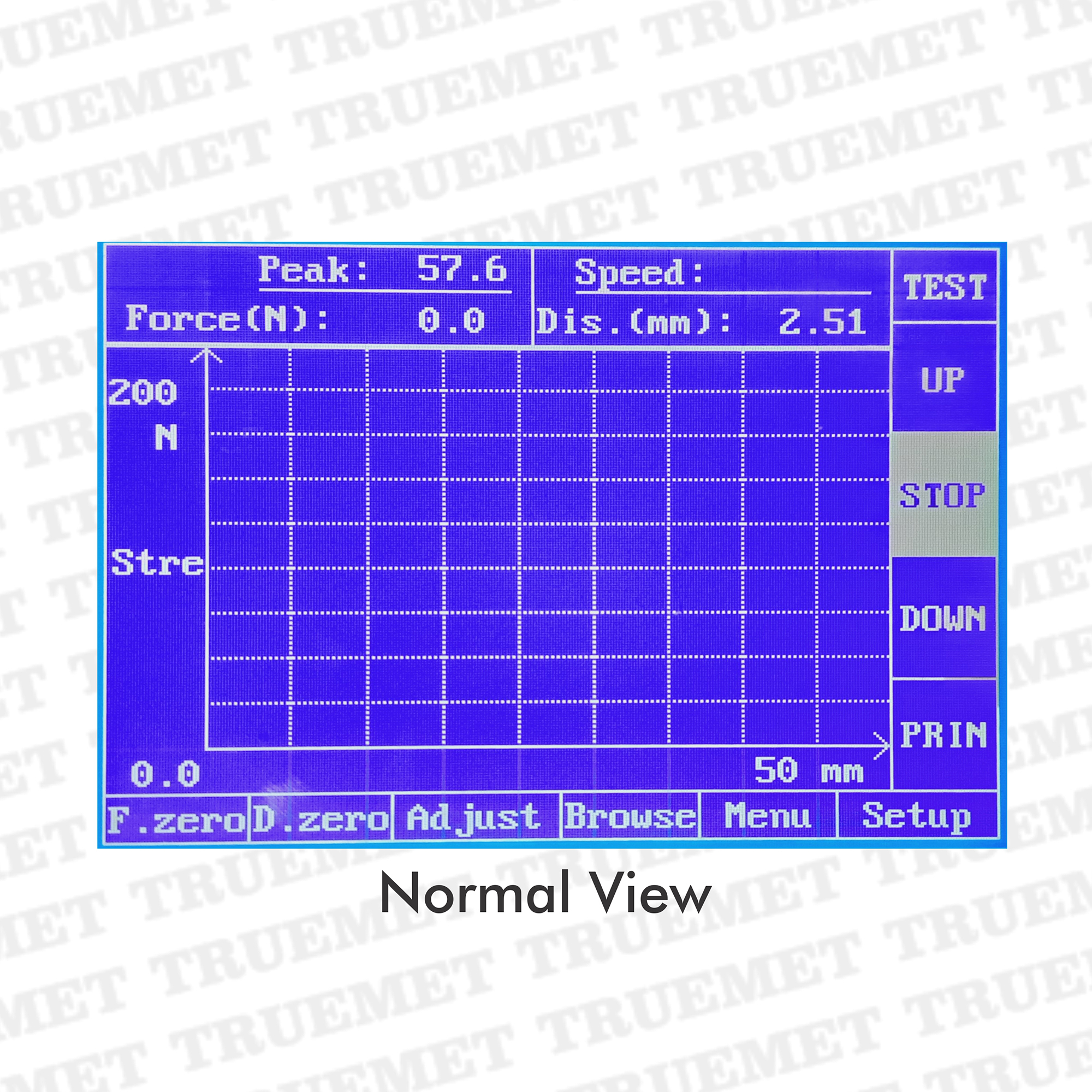

1.Automatic Display: During the whole testing process, the LCD real time display the testing force, peak value, displacement, testing speed and testing force - time curve, testing force - displacement curves.

2.Automatic Return: Beam automatically return to initial position when testing finished.

3.Breakage judgement: After sample fracture beam automatically stop moving.

Safety Device

1.Stroke protection: Over travel safety by fixed and adjustable limit switches at both ends.

2.Overload protection: by system setting.

3.Emergency stop: by emergency push button.

Main Frame Construction

1.Adopt single column, double working space structure, upper for tensile & lower for compression (can be customized).

2.Machine base hosts the lower crosshead, the servomotor as well as the screw-ball driven mechanical transmission system.

3.Adopting ball screw drive, realize no clearance in transmission, make sure the precision control of the test force and test speed.

4.Precision AC Servo motor, AC Drive and High resolution photoelectric encoder for displacement measurement.

5. All machine of frame size is different as per capacity.

Precision in Material Testing

Our testing machine uses a single Ball Screw mechanism, delivering accurate force application and uniform movement for reliable material strength evaluations. A digital interface ensures precise readings, streamlining your workflow and enhancing data reliability for all users.

Compact and Efficient Design

Measuring just 425x400x1315 mm and weighing 90 kg, this universal testing machine fits seamlessly into most lab or industrial environments. Its streamlined design does not compromise on performance, making it an ideal choice for organizations with space constraints.

FAQs of Digital Electro Mechanical Universal Testing Machine (single Ball Screw):

Q: How does the single Ball Screw mechanism enhance the testing process?

A: The single Ball Screw design ensures smooth, precise movement of the crosshead during testing. This enhances load accuracy and uniformity, making it ideal for high-precision measurement in tensile, compression, and bending tests.

Q: What types of materials can be tested with this Digital Electro Mechanical Universal Testing Machine?

A: This universal testing machine is suitable for a variety of materials, including metals, plastics, composites, and rubber. Its versatility allows it to accommodate different testing needs in quality control and research environments.

Q: When should maintenance or calibration be performed on the machine?

A: Regular calibration every 6 to 12 months is recommended, depending on usage frequency and compliance requirements. Routine maintenance includes checking the ball screw lubrication, electrical connections, and ensuring the digital interface is functioning properly.

Q: Where can I purchase or inquire about this machine in India?

A: This product is available through authorized dealers, exporters, manufacturers, retailers, suppliers, and wholesalers across India. For sales inquiries, consult local listings or reach out to certified suppliers for support.

Q: What is the process for using the testing machine to perform a tensile test?

A: To conduct a tensile test, secure the specimen in the grips, configure the machines parameters via the digital interface, and start the test. The single Ball Screw ensures precise, controlled movement, while the digital system records force and elongation data.

Q: What are the key benefits of using this universal testing machine?

A: Key benefits include precise measurement, reliable repeatability thanks to the single Ball Screw drive, user-friendly digital controls, and adaptability to diverse material testing applications. Its compact size also conserves lab space without sacrificing functionality.
