Computer Controlled Automatic Touch Screen Micro Vickers Hardness Tester (HT-1000ADT with Vidas 4.0)

Send Inquiry

Request To Call Back

Computer Controlled Automatic Touch Screen Micro Vickers Hardness Tester (HT-1000ADT with Vidas 4.0)

Get a Price/Quote

MOQ : 1 Number

Computer Controlled Automatic Touch Screen Micro Vickers Hardness Tester (HT-1000ADT with Vidas 4.0) Specification

Interface Type
USB/RS232

Equipment Type
Computer Controlled Micro Vickers Hardness Tester

Operating Voltage
220V ±5% AC

Temperature
10°C – 30°C

Features
Automatic focusing, turret changing, data export, motorized stage, image analysis, auto measurement, connectivity with VIDAS 4.0 software

Application
Material hardness testing (metals, alloys, thin layers, micro parts)

Humidity
≤ 85% RH

Display Type
7-inch Touch Screen + PC Display

Automation Grade
Automatic, computer controlled

Max Height
100 mm specimen

Mounting Type
Benchtop

Power Supply
AC220V±5% 50-60Hz

Hardness
Vickers (HV, with conversion to HK, HB, HRC etc.)

Test Range
5 – 3000 HV

Dimension (L*W*H)
530X200X530 Millimeter (mm)

Response Time
Sub-2 seconds per measurement

Measuring Range
1 – 1000 gf load

Number of Specimens
Multiple, programmable testing locations

Frequency
50-60 Hz

Resolution
0.01 μm (indent measurement)

Specimen Size
Up to 100 mm height

Accuracy
±1% (hardness value)

Port Size
Standard USB, RS232 interfaces

Usage
Micro Vickers hardness test for laboratory and QC

Capacity
Single/Batch testing capability

Machine Weight
35 Kilograms (kg)

Test Speed
Automatic, computer controlled

Test Width
Up to 150 mm

Test Stroke
0 – 100 mm

Control Mode
Touch Screen + PC Software (VIDAS 4.0)

Computer Controlled Automatic Touch Screen Micro Vickers Hardness Tester (HT-1000ADT with Vidas 4.0) Trade Information

Minimum Order Quantity
1 Number

Payment Terms
Cheque, Telegraphic Transfer (T/T)

Supply Ability
1 Number Per Day

Delivery Time
1 Week

Main Domestic Market
All India

About Computer Controlled Automatic Touch Screen Micro Vickers Hardness Tester (HT-1000ADT with Vidas 4.0)

Features

DIGITAL EYEPIECE :Equipped with 10x Digital Eyepiece to directly measure the length of the diagonal. The hardness value can be displayed directly and there is no need to enter the length of the diagonal.

CAMERA PORT :Machine equipped with dual optical channel. 5 MP USB Camera is connected to one of the dual optical channels, other optical channel is for 10X eyepiece. Both optical channel works simultaneously.

ILLUMINATION SYSTEM :Halogen illumination unit with adjustable intensity gives very clear images and can be also used as a simple microscope. Halogen illumination unit enter stand by mode after a certain period of inactivity which gives it a long service life and low power consumption.

TEST FORCE :Wide range of test force (10gm to 1000gm) can be selected with external force selection knob. The test force is automatically displayed on the 7 inch LCD touch display as well as in PC.

DATA OUTPUT :Equipped with built-in thermal printer to take the print out the hardness result. USB port is also available to get the data in pendrive. RS232 port is available to connect the machine with PC.

AUTO TURRET MECHANISM :Auto turret perform a series of operation automatically. Measuring lens automatically comes back to central position after making indentation. The position of the indenter and the objective lens can be automatically switched from PC as well as using touch panel.

Z-AXIS LIFTING SYSTEM :Side-Ways lifting system makes the z-axis movement more stable and accurate.

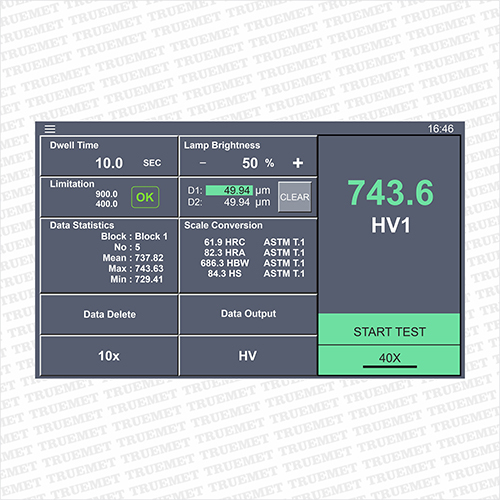

LCD TOUCH SCREEN PANEL :7 Inch LCD touch screen can visually display the hardness value, hardness conversion (4 conversion scales can be displayed at the same time), test force, dwell time, statistical data, upper & lower limit and brightness of optical system.

EMERGENCY SWITCH :Equipped with emergency stop switch.

Advanced Automation with Precision Engineering

Equipped with motorized auto-focus, automatic turret switching, and a motorized XY stage, the HT-1000ADT streamlines micro Vickers hardness testing. The high precision digital encoder, programmable specimen positioning, and auto measurement functions ensure accurate, repetitive results with minimal manual intervention. Its auto report and statistics functionalities enable detailed, easy-to-understand documentation for every test batch.

User-Friendly Operation and Powerful Software

The system integrates a 7-inch capacitive touch screen with intuitive PC control via VIDAS 4.0 software. Operators can switch between manual or automatic controls, program multiple test locations, and export results in various digital formats. Multilingual support, advanced chart generation, and comprehensive database management make the system accessible and efficient for users in different laboratories.

Reliable Data Management and International Compliance

All test data can be securely stored in the instrument or exported to a connected PC. The HT-1000ADT supports industry-standard file formats for easy integration into laboratory workflows. Designed to meet ISO 6507, ASTM E384, and JIS Z2244 specifications, this tester guarantees internationally recognized accuracy and reliability for hardness measurements.

FAQs of Computer Controlled Automatic Touch Screen Micro Vickers Hardness Tester (HT-1000ADT with Vidas 4.0):

Q: How does the HT-1000ADT achieve precise Vickers hardness testing?

A: The HT-1000ADT uses a Vickers diamond indenter, high-resolution digital encoder, motorized auto-focus, and programmable XY stage to ensure accurate, repeatable placement and measurement of indents, providing 1% accuracy and 0.01 m resolution.

Q: What materials and sample sizes can be tested with this instrument?

A: It is designed to test metals, alloys, thin films, and micro components. Samples up to 100 mm in height and 150 mm in width can be accommodated, with the motorized stage enabling multiple programmable testing locations for single or batch analysis.

Q: When should I use the automatic versus manual focusing system?

A: Automatic focusing is ideal for repetitive testing and ensures rapid, consistent results, especially in batch mode. Manual focusing is useful for initial setup, unique specimens, or when operator oversight is required for specific measurements.

Q: Where is the instrument typically used and who are its main users?

A: The HT-1000ADT is widely used in materials science laboratories, industrial quality control, and research institutions engaged in advanced hardness testing. It is suitable for dealers, exporters, manufacturers, retailers, suppliers, and wholesalers, especially in high-precision environments.

Q: What is the process for exporting measurement data from the tester?

A: Data can be saved internally or exported to a PC using USB or RS232 interfaces. The VIDAS 4.0 software allows users to export results as CSV, PDF, or images, supporting further analysis and easy archiving.

Q: How does the system ensure user safety and equipment protection during operation?

A: The tester is equipped with overload and overcurrent protection mechanisms, ensuring safe operation for both the instrument and the operator during automated and manual testing processes.

Q: What are the main benefits of using VIDAS 4.0 software with the HT-1000ADT?

A: VIDAS 4.0 enhances testing by enabling automated measurement, real-time statistics, hardness mapping, customized report generation, multi-language support, and seamless connectivity between touch screen and PC control, boosting efficiency and data traceability.
