MOQ : 1 Number

Computer Controlled Automatic Touch Screen Micro Vickers Hardness Tester (HT-1000AT with Vidas 4.0) Specification

  • Port Size
  • Standard analytical port
  • Features
  • Automatic turret, autofocus, motorized stage, inbuilt camera, Vidas 4.0 analysis software
  • Resolution
  • 0.001 HV
  • Equipment Type
  • Micro Vickers Hardness Tester
  • Humidity
  • ≤85% RH (non-condensing)
  • Number of Specimens
  • Multiple (with auto-stage)
  • Hardness
  • Micro Vickers
  • Test Range
  • 1gf – 1000gf
  • Measuring Range
  • 1–3000 HV
  • Max Height
  • 100 mm (specimen)
  • Automation Grade
  • Fully Automatic
  • Operating Voltage
  • AC220V±5%
  • Power Supply
  • AC220V±5% 50-60Hz
  • Specimen Size
  • Maximum height: 100 mm, up to 200 mm width
  • Display Type
  • 7 or larger Touch Screen LCD
  • Temperature
  • 10°C~30°C (operating)
  • Accuracy
  • ±1.5% of reading
  • Interface Type
  • USB, RS232, LAN
  • Response Time
  • Instantaneous (under 1 second)
  • Application
  • Metallography, material testing, scientific research, quality control
  • Mounting Type
  • Benchtop
  • Frequency
  • 50-60Hz
  • Dimension (L*W*H)
  • 530X200X530 Millimeter (mm)
  • Usage
  • Microhardness measurement using Vickers indenter
  • Capacity
  • Single/Multiple specimen automatic testing
  • Machine Weight
  • 35 Kilograms (kg)
  • Test Speed
  • Automatic, programmable
  • Test Width
  • Up to 200 mm
  • Test Stroke
  • Up to 100 mm
  • Control Mode
  • Computer Controlled, Touch Screen


Computer Controlled Automatic Touch Screen Micro Vickers Hardness Tester (HT-1000AT with Vidas 4.0) Trade Information

  • Minimum Order Quantity
  • 1 Number
  • Payment Terms
  • Cheque, Telegraphic Transfer (T/T)
  • Supply Ability
  • 1 Number Per Day
  • Delivery Time
  • 1 Week
  • Main Domestic Market
  • All India


About Computer Controlled Automatic Touch Screen Micro Vickers Hardness Tester (HT-1000AT with Vidas 4.0)

Features

MANUAL EYEPIECE :Equipped with 10x Manual Eyepiece to measure the length of diagonal. The hardness value can be displayed directly on the screen by entering the indentation diagonal length.

CAMERA PORT :Machine equipped with dual optical channel. 5 MP USB Camera is connected to one of the dual optical channels, other optical channel is for 10X eyepiece. Both optical channel works simultaneously.

ILLUMINATION SYSTEM :Halogen illumination unit with adjustable intensity gives very clear images and can be also used as a simple microscope. Halogen illumination unit enter stand by mode after a certain period of inactivity which gives it a long service life and low power consumption.

TEST FORCE :Wide range of test force (10gm to 1000gm) can be selected with external force selection knob. The test force is automatically displayed on the 7 inch LCD touch display as well as in PC.

DATA OUTPUT :Equipped with built-in thermal printer to take the print out the hardness result. USB port is also available to get the data in pendrive. RS232 port is available to connect the machine with PC.

AUTO TURRET MECHANISM :Auto turret perform a series of operation automatically. Measuring lens automatically comes back to central position after making indentation. The position of the indenter and the objective lens can be automatically switched from PC as well as using touch panel.

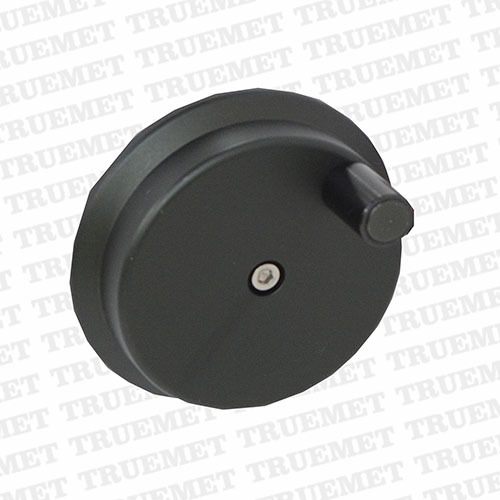

Z-AXIS LIFTING SYSTEM :Side-Ways lifting system makes the z-axis movement more stable and accurate.

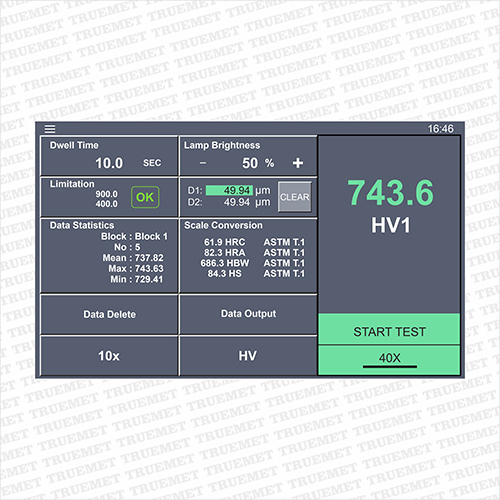

LCD TOUCH SCREEN PANEL :7 Inch LCD touch screen can visually display the hardness value, hardness conversion (4 conversion scales can be displayed at the same time), test force, dwell time, statistical data, upper & lower limit and brightness of optical system.

EMERGENCY SWITCH :Equipped with emergency stop switch.



Advanced Microhardness Measurement

With a precision Vickers diamond indenter, automated stage movement, and high-resolution imaging, this tester ensures rapid and repeatable microhardness measurements. The integration of Vidas 4.0 software and a user-friendly touch screen facilitates advanced material analysis and robust quality control in metallography and scientific research.


Seamless Automation and Control

The HT-1000AT features computer-controlled, programmable testing modes, enabling efficient operation via touch screen or PC. Its motorized stage and automatic specimen handling increase productivity, helping users accomplish multiple tests with minimal manual intervention.


Intelligent Data Management and Connectivity

Data output is streamlined with options for USB, RS232, and LAN connections, supporting automatic export of results in various file formats. Internal and external data storage options, multilingual support, and instant response times enhance usability across diverse laboratory environments.

FAQs of Computer Controlled Automatic Touch Screen Micro Vickers Hardness Tester (HT-1000AT with Vidas 4.0):


Q: How does the automatic touch screen Micro Vickers Hardness Tester operate?

A: The tester uses computer-controlled functions and a large touch screen LCD for seamless operation. Users can initiate tests, set parameters, and view real-time results directly on the screen or from a connected PC, while the motorized X,Y stage and automatic turret streamline the testing process.

Q: What benefits does Vidas 4.0 analysis software provide?

A: Vidas 4.0 software offers advanced image analysis algorithms for precise indentation measurement and data processing. It simplifies test management, automates calculations, and supports direct data export to multiple formats, improving the efficiency and accuracy of microhardness assessments.

Q: Where can this hardness tester be applied?

A: The HT-1000AT is ideal for metallography, materials testing, scientific research, and quality control labs. Its flexibility accommodates a wide range of specimen sizes and materials, making it suitable for laboratories, research centers, and industrial facilities.

Q: What is the process for conducting a microhardness test with this equipment?

A: Place the specimen on the motorized stage, select the desired settings via the touch screen or PC, and start the test. The tester automatically positions, focuses, indents, and captures images. Vidas 4.0 analyzes the data, and results are available instantly, with the option to export for further review.

Q: How is data stored and exported from the instrument?

A: Measured data can be stored internally or externally via USB, and exported directly in Excel, CSV, or PDF formats using built-in connectivity options (USB, RS232, LAN). This flexibility streamlines reporting and archival workflows.

Q: What are the main benefits of automated stage movement and autofocus?

A: Automated stage movement and autofocus enable precise specimen positioning, faster test cycles, and consistent results. These features significantly reduce manual handling and user effort, improving both throughput and measurement repeatability.
