Computerized Digital Micro Vickers Hardness Tester (HT-1000D with Vidas 2.0)

Name: Computerized Digital Micro Vickers Hardness Tester (HT-1000D with Vidas 2.0)
Brand: OM ENGINEERING INSTRUMENTS
Price: 1 INR
Availability: InStock

Price 1 INR/ Number

Get a Price/Quote

MOQ : 1 Number

Computerized Digital Micro Vickers Hardness Tester (HT-1000D with Vidas 2.0) Specification

Features
Automatic hardness calculation, digital imaging, and software data processing

Frequency
50-60 Hz

Hardness
Micro Vickers Hardness (HV)

Temperature
10°C to 40°C

Humidity
<90% RH

Response Time
<1 second

Application
Microhardness testing for metals, alloys, ceramics, and composites

Specimen Size
Up to 100 mm thickness

Power Supply
AC220V±5% 50-60Hz

Accuracy
1.0% of reading

Test Range
1HV – 2967HV

Mounting Type
Bench-top

Interface Type
USB/RS232

Operating Voltage
220V AC

Equipment Type
Computerized Digital Micro Vickers Hardness Tester

Automation Grade
Automatic

Port Size
Standard USB and RS232 interfaces

Max Height
100 mm

Measuring Range
1HV – 2967HV

Display Type
Large LCD Digital Display & Computer Interface

Dimension (L*W*H)
530X200X530 Millimeter (mm)

Resolution
0.01 µm (micron)

Number of Specimens
Multiple (as per programmable schedule)

Usage
Laboratory, research, and industrial quality control

Capacity
Test force range: 10g to 1000g

Machine Weight
35 Kilograms (kg)

Test Speed
Variable (Digital control)

Test Width
100 mm

Test Stroke
50 mm

Control Mode
Computerized Digital Control with Vidas 2.0 Software

Computerized Digital Micro Vickers Hardness Tester (HT-1000D with Vidas 2.0) Trade Information

Minimum Order Quantity
1 Number

Payment Terms
Cheque, Telegraphic Transfer (T/T)

Supply Ability
1 Number Per Day

Delivery Time
1 Week

Main Domestic Market
All India

About Computerized Digital Micro Vickers Hardness Tester (HT-1000D with Vidas 2.0)

Features

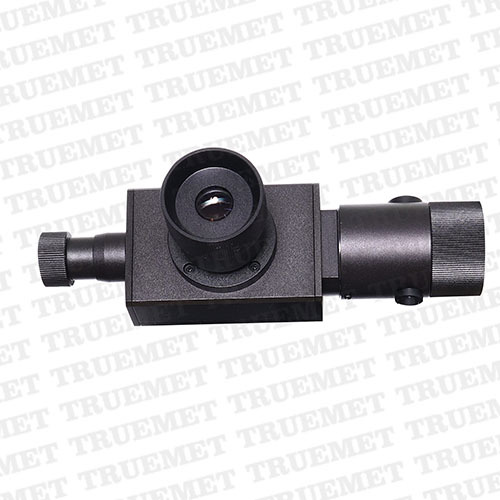

DIGITAL EYEPIECE :Equipped with 10x Digital Eyepiece to directly measure the length of the diagonal. The hardness value can be displayed directly on LCD screen by pressing push button on eyepiece.

CAMERA PORT :Machine equipped with dual optical channel. 5 MP USB Camera is connected to one of the dual optical channels, other optical channel is for 10X eyepiece. Both optical channel works simultaneously.

ILLUMINATION SYSTEM :Halogen illumination unit with adjustable light intensity. gives very clear images and can be also used as a simple microscope. Halogen illumination unit enter stand by mode after a certain period of inactivity which gives it a long service life and low power consumption.

TEST FORCE :Wide range of test force (10gm to 1000gm) can be selected with external force selection knob. The test force is automatically displayed on the 75X100mm LCD Screen.

DATA OUTPUT :Equipped with built-in thermal printer to take the print out the hardness result.

TURRET MECHANISM :Equipped with manual turret mechanism. The position of the indentor and objective lens can be switched manually.

Z-AXIS LIFTING SYSTEM :Side-Ways lifting system makes the z-axis movement more stable and accurate.

LCD SCREEN PANEL :75X100mm LCD screen can visually display the hardness value, conversion hardness, test force, dwell time, statistical data, upper & lower limit and brightness of optical system.

EMERGENCY SWITCH :Equipped with emergency stop switch.

Precision Microhardness Testing

Designed for accurate evaluation of metals, alloys, ceramics, and composite materials, the HT-1000D ensures high precision with its Vickers diamond indenter and micro-level resolution. Test specimens up to 100 mm thick with load forces selectable between 10g and 1000g, making it suitable for a wide range of materials and microstructures.

Advanced Digital Interface and Automation

Experience seamless operation with automatic data collection and analysis using the Vidas 2.0 software. All measurements are instantly displayed on a large LCD digital screen and can be saved or exported via USB/RS232. The in-built camera captures images, while software automates calibration and hardness calculations for increased efficiency.

User-Friendly Features and Compliance

Efficiently manage multiple specimens with programmable scheduling. Safety is ensured through overload and overcurrent protection, while electronic calibration maintains long-term accuracy. The tester operates within a temperature range of 10C to 40C and less than 90% RH, meeting both laboratory and industrial requirements in India.

FAQs of Computerized Digital Micro Vickers Hardness Tester (HT-1000D with Vidas 2.0):

Q: How does the HT-1000D Micro Vickers Hardness Tester perform measurements?

A: The tester can perform measurements automatically or manually with precise digital control. Using a Vickers diamond indenter and objective lenses (10x/40x), users apply selectable loads. The Vidas 2.0 software captures indentation images, measures diagonals, and calculates hardness values instantly.

Q: What types of materials and specimens can be tested with this equipment?

A: The HT-1000D is designed to test metals, alloys, ceramics, and composites. It accommodates specimen thickness up to 100 mm and allows multiple specimens to be scheduled for testing, making it ideal for both research and quality control applications.

Q: When should electronic calibration be performed on the tester?

A: Electronic and automated calibration should be conducted as recommended in the user manual, typically before commencing a new testing session or after significant usage, to ensure ongoing measurement accuracy.

Q: Where can the data and images captured by the tester be stored or exported?

A: Test results and image data can be stored internally on the machine or exported to a connected computer. Users can save files in Excel or PDF format, print results directly, or use USB/RS232 interfaces for seamless data transfer.

Q: What is the process for operating the HT-1000D in a laboratory environment?

A: Install the tester on a stable bench-top, set the desired load and retention time, then position the specimen (up to 100 mm thick). The Vidas 2.0 software guides users through imaging, measurement, calculation, and storage/export of findings, ensuring a streamlined workflow.

Q: How does the HT-1000D benefit users in quality control and research?

A: The system delivers rapid, accurate hardness assessments with less human error, thanks to automated measurement and data processing. Its programmable test schedules, digital interface, and robust data management support scientific research, development, and industrial quality assurance.

Q: What safety features are incorporated into the hardness tester?

A: The instrument includes overload and overcurrent protection to safeguard both users and equipment, ensuring reliable operation even under demanding laboratory or industrial conditions.
