Computerized Digital Touch Screen Vickers Hardness Tester (VHT-ADT Series with VIDAS 2.0)

Send Inquiry

Request To Call Back

Computerized Digital Touch Screen Vickers Hardness Tester (VHT-ADT Series with VIDAS 2.0)

Get a Price/Quote

MOQ : 1 Number

Computerized Digital Touch Screen Vickers Hardness Tester (VHT-ADT Series with VIDAS 2.0) Specification

Mounting Type
Bench-top

Application
Metallurgical, Research Laboratory, Quality Control

Display Type
7-inch Color Touch Screen Display

Frequency
50-60Hz

Measuring Range
1HV-2967HV

Response Time
Instant (Real-time) Display

Temperature
0°C~40°C (Operating)

Max Height
170 mm

Interface Type
USB, RS232, LAN

Automation Grade
Automatic

Dimension (L*W*H)
585X200X630 Millimeter (mm)

Port Size
Standard USB/RS232

Operating Voltage
220V AC±5% 50/60Hz

Specimen Size
Max 120 mm

Humidity
≤ 90% RH

Number of Specimens
Single/Multiple (Auto Counting with VIDAS 2.0)

Resolution
0.01 μm

Equipment Type
Computerized Digital Vickers Hardness Tester

Power Supply
AC220V±5% 50-60Hz

Hardness
Vickers (HV)

Accuracy
±1.0%

Features
Touch Screen, Auto Turret, Auto Focusing, Data Storage, Report Generation, Image Analysis System VIDAS 2.0

Test Range
5gf – 2kgf

Usage
Vickers Micro/Macro Hardness Measurement

Capacity
Motorized Load Change 5gf-2kgf

Machine Weight
42 Kilograms (kg)

Test Speed
Automatic / Adjustable

Test Width
Up to 120 mm

Test Stroke
0-100 mm

Control Mode
Digital Touch Screen (Computerized)

Computerized Digital Touch Screen Vickers Hardness Tester (VHT-ADT Series with VIDAS 2.0) Trade Information

Minimum Order Quantity
1 Number

Payment Terms
Cheque, Telegraphic Transfer (T/T)

Supply Ability
1 Number Per Day

Delivery Time
1 Week

Main Domestic Market
All India

About Computerized Digital Touch Screen Vickers Hardness Tester (VHT-ADT Series with VIDAS 2.0)

Features

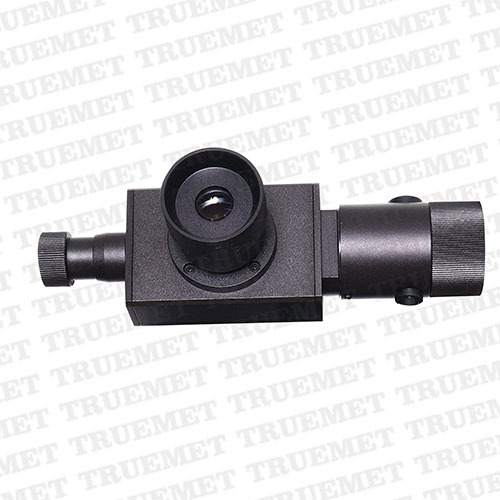

DIGITAL EYEPIECE :Equipped with 10x Digital Eyepiece to directly measure the length of the diagonal. The hardness value can be displayed directly and there is no need to enter the length of the diagonal.

CAMERA PORT :Machine equipped with dual optical channel, one optical channel for 10X eyepiece and another optical channel is for camera by which machine can be upgraded into computerized / computer controlled model. Both optical channel works simultaneously

ILLUMINATION SYSTEM :Halogen illumination unit with adjustable intensity gives very clear images and can be also used as a simple microscope. Halogen illumination unit enter stand by mode after a certain period of inactivity which gives it a long service life and low power consumption.

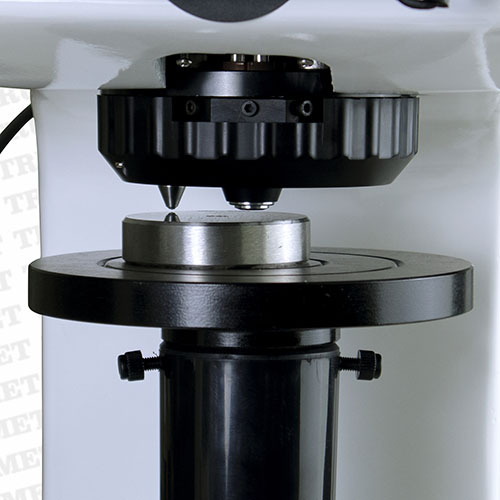

AUTO TURRET MECHANISM :Equipped with auto turret mechanism. Auto turret perform a series of operation and measuring lens automatically comes back to central position after making indentation. The position of the indenter and the objective lens can be automatically switched using touch panel.

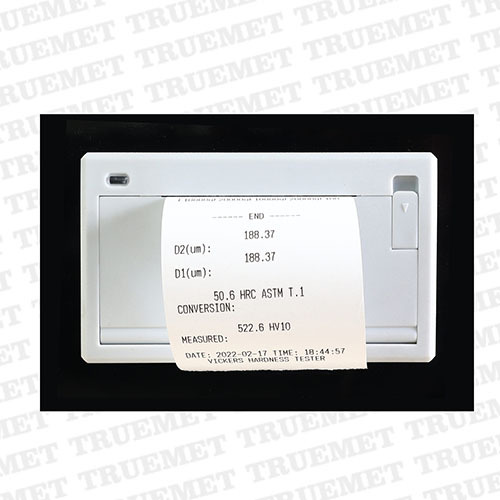

DATA OUTPUT :Equipped with built is thermal printer to take the print out the hardness result USB port is also available to get the data in pendrive

TEST FORCE :Wide range of test force can be selected with external force selection knob. The test force is automatically displayed on the 7 inch LCD touch display.

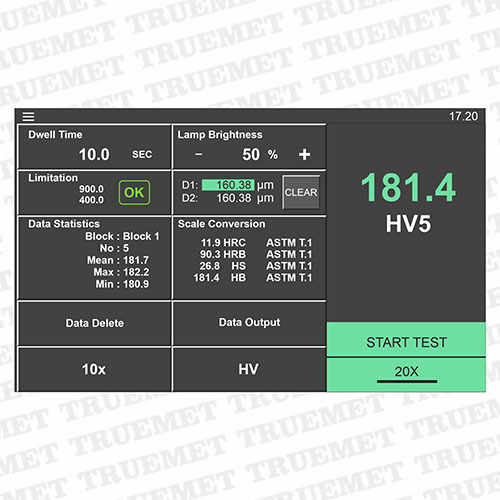

LCD TOUCH SCREEN PANEL :7 Inch LCD touch screen can visually display the hardness value, conversion hardness, test force, dwell time, statistical data, upper & lower limit and brightness of optical system.

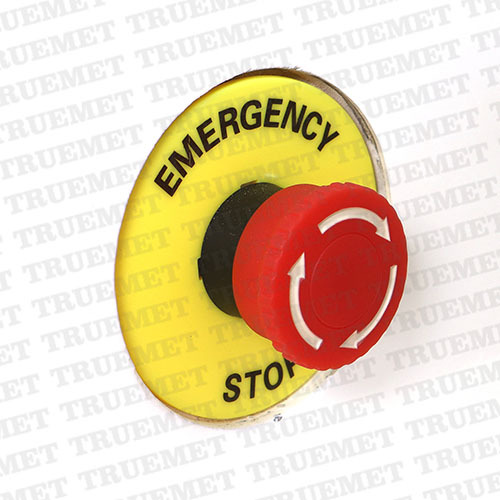

EMERGENCY SWITCH :Equipped with emergency stop switch.

Automated Precision Testing

With automatic motorized loading, a precision X-Y movement stage, auto turret, and auto focusing, the VHT-ADT Series streamlines hardness testing. The machine allows for highly accurate and repeatable measurements across a wide range (1HV2967HV), supporting both Vickers and optional Knoop test methods. Its user-friendly digital touch screen maximizes operational control and efficiency.

Comprehensive Data Management

Equipped with substantial internal memory and versatile data output optionsincluding USB, LAN, RS232, and SD cardthe tester ensures robust result storage and easy integration into lab networks. The VIDAS 2.0 advanced image analysis and auto counting functions facilitate swift data analysis, report generation, and result sharing in multiple supported languages.

Enhanced Usability and Safety

The VHT-ADT Series prioritizes user experience and safety, boasting an intuitive 7-inch color touch screen, adjustable LED brightness, and emergency stop and overload protection features. Designed for bench-top use, it operates reliably between 0C40C and up to 90% relative humidity, catering to the demanding needs of metallurgical and research laboratories.

FAQs of Computerized Digital Touch Screen Vickers Hardness Tester (VHT-ADT Series with VIDAS 2.0):

Q: How do I operate the Computerized Digital Touch Screen Vickers Hardness Tester?

A: Operation involves mounting the specimen on the precision X-Y stage, selecting the appropriate indenter (Vickers or optional Knoop), and configuring test parameters via the 7-inch touch screen. Automatic features like motorized load control, auto turret, and focusing streamline the process. Test results display instantly on-screen and can be analyzed or exported via multiple interfaces.

Q: What types of specimens and sizes can this tester accommodate?

A: The VHT-ADT Series accepts specimens up to 120 mm in width and 170 mm in height. Its robust stage and automatic specimen counting feature makes it suitable for single or multiple samples, common in metallurgical and quality control labs.

Q: When is it beneficial to use the VHT-ADT Series tester in a laboratory setting?

A: The tester is ideal for situations requiring precise, repeatable Vickers (and optional Knoop) hardness measurements. Its automation, accuracy (1.0%), and conformity to international standards (EN ISO 6507, ASTM E92, E384) make it valuable for research, metallurgical, and quality assurance environments.

Q: Where can the test results be stored or exported?

A: Test results are stored locally in internal memory (up to 5000 results) and can be exported via USB, LAN, RS232, or SD card. The systems advanced VIDAS 2.0 software allows further analysis, report generation, and seamless integration into existing digital lab workflows.

Q: What safety features are integrated into the hardness tester?

A: To ensure user safety, the tester is equipped with overload protection and an emergency stop function. Additionally, it is designed for safe benchtop mounting and operates securely within standard laboratory environmental conditions (up to 90% RH, 0C40C).

Q: How does the VIDAS 2.0 software support the testing process?

A: VIDAS 2.0 provides advanced image analysis, automated specimen counting, and comprehensive data management. It enables instant results display, streamlined reporting, and multi-language support, ensuring efficient and accurate test workflows for all users.

Q: What are the main benefits of using this Vickers Hardness Tester?

A: The main benefits include high measurement accuracy, operational efficiency via automation, extensive data storage and connectivity options, compliance with recognized standards, and enhanced safety and user experiencemaking it a reliable solution for diverse hardness testing needs.
