Computerized Digital Touch Screen Vickers Hardness Tester (VHT-DT Series with VIDAS 2.0)

Send Inquiry

Request To Call Back

Computerized Digital Touch Screen Vickers Hardness Tester (VHT-DT Series with VIDAS 2.0)

Get a Price/Quote

MOQ : 1 Number

Computerized Digital Touch Screen Vickers Hardness Tester (VHT-DT Series with VIDAS 2.0) Specification

Resolution
0.1 HV

Temperature
10°C - 35°C (Optimal Operating Range)

Frequency
50-60 Hz

Humidity
≤85% RH (Non-condensing)

Interface Type
RS-232, USB 2.0

Mounting Type
Bench-top Floor Model

Application
Micro Hardness Testing of Metals, Alloys and Various Materials

Equipment Type
Computerized Digital Touch Screen Vickers Hardness Tester

Hardness
Vickers (HV)

Test Range
5g - 3kgf (Vickers Load Range)

Dimension (L*W*H)
585X200X630 Millimeter (mm)

Response Time
<1 Second

Display Type
8-inch TFT Color Touch Screen Display

Features
VIDAS 2.0 image analysis, Data Storage, Automated Calculation, Graphical Display, Statistical Analysis

Automation Grade
Semi-automatic with Automatic Turret

Gas Pressure
Not Applicable (Electrical Operation)

Operating Voltage
AC220V ±5% 50-60Hz

Number of Specimens
Single specimen (with stage, multiple positioning)

Power Supply
AC220V±5% 50-60Hz

Measuring Range
5HV - 3000HV

Port Size
Standard RS-232, USB for data output

Accuracy
Conforms to ISO 6507, ASTM E384 standards

Specimen Size
Maximum Height 110 mm, Width 120 mm

Max Height
110 mm

Usage
Metallurgical Laboratory & Quality Control

Capacity
Variable, as per standard model configuration

Machine Weight
42 Kilograms (kg)

Test Speed
Variable, as per standard test cycle

Test Width
Up to 110 mm (approx., for most specimen stages)

Test Stroke
0-100 mm (Motorized Z Axis)

Control Mode
Computerized Digital Touch Screen with VIDAS 2.0 Software

Computerized Digital Touch Screen Vickers Hardness Tester (VHT-DT Series with VIDAS 2.0) Trade Information

Minimum Order Quantity
1 Number

Supply Ability
1 Number Per Day

Delivery Time
1 Week

Main Export Market(s)
Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa

Main Domestic Market
All India

About Computerized Digital Touch Screen Vickers Hardness Tester (VHT-DT Series with VIDAS 2.0)

Features

DIGITAL EYEPIECE :Equipped with 10x Digital Eyepiece to directly measure the length of the diagonal. The hardness value can be displayed directly and there is no need to enter the length of the diagonal.

CAMERA PORT :Machine equipped with dual optical channel, one optical channel for 10X eyepiece and another optical channel is for camera by which machine can be upgraded into computerized model. Both optical channel works simultaneously.

ILLUMINATION SYSTEM :Halogen illumination unit with adjustable intensity gives very clear images and can be also used as a simple microscope. Halogen illumination unit enter stand by mode after a certain period of inactivity which gives it a long service life and low power consumption.

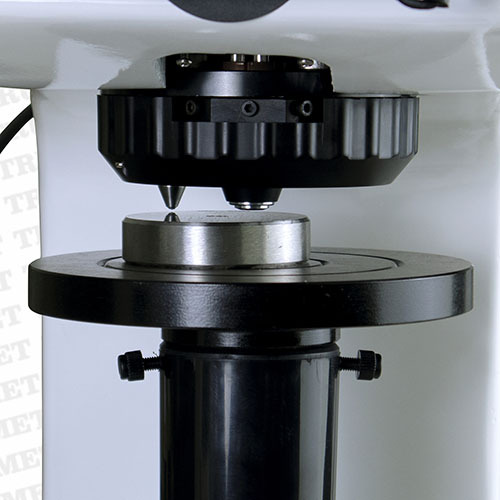

TURRET MECHANISM :Equipped with manual turret mechanism. The position of the indenter and the objective lens can be automatically switched manually.

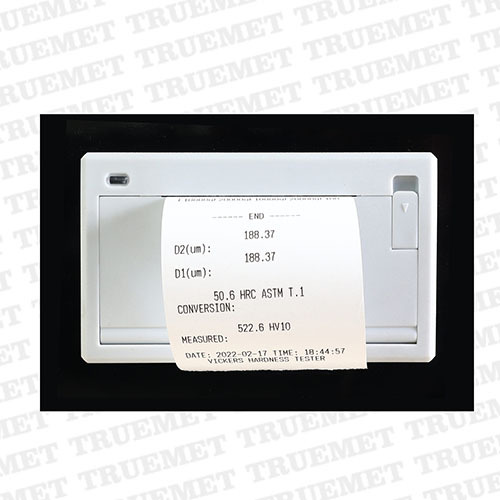

DATA OUTPUT :Equipped with built is thermal printer to take the print out the hardness result USB port is also available to get the data in pendrive

TEST FORCE : Wide range of test force can be selected with external force selection knob. The test force is automatically displayed on the 7 inch LCD touch display.

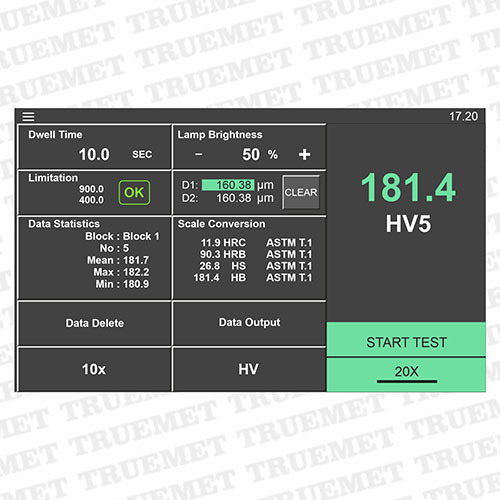

LCD TOUCH SCREEN PANEL :7 Inch LCD touch screen can visually display the hardness value, conversion hardness, test force, dwell time, statistical data, upper & lower limit and brightness of optical system.

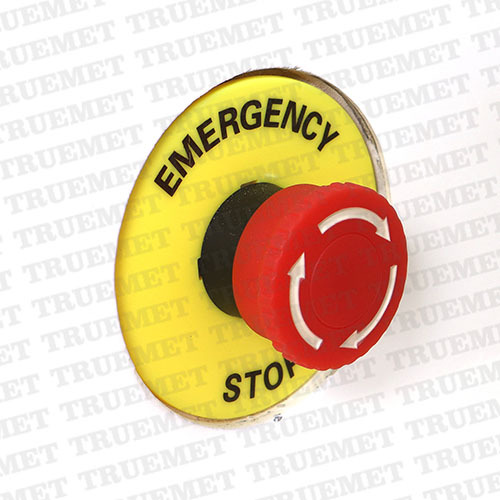

EMERGENCY SWITCH :Equipped with emergency stop switch.

Advanced Touch Screen Operation

The VHT-DT Series leverages an 8-inch TFT color touch screen, allowing users to effortlessly control test parameters and view results. The digital interface simplifies operating procedures and reduces the risk of manual errors. With less than one second response time, users benefit from efficiency and instant feedback during each hardness test cycle.

VIDAS 2.0 for Comprehensive Analysis

Integrated VIDAS 2.0 software enhances the systems analysis capabilities. It features advanced image capture, automated calculation of hardness values, graphical display, and robust statistical analysis tools. Users can generate detailed reports and export data easily to PDF and Excel formats for documentation and future reference.

Flexible Specimen Handling

The motorized X-Y stage covers a 25 x 25 mm travel area and supports specimens up to 110 mm in height and 120 mm in width. Multiple positioning options and automatic turret operation make this model suitable for single specimens tested sequentially, providing versatility in laboratory applications.

FAQs of Computerized Digital Touch Screen Vickers Hardness Tester (VHT-DT Series with VIDAS 2.0):

Q: How does the VHT-DT Series (VIDAS 2.0) improve hardness testing efficiency?

A: The VHT-DT Series integrates a computerized touch screen interface, automated turret, and motorized focusing for quick specimen alignment. The VIDAS 2.0 software automates calculations and report generation, reducing manual workload and minimizing errors, thus offering faster and more efficient hardness testing results.

Q: What is the testing process using this Vickers Hardness Tester?

A: Specimens are placed on the X-Y stage, aligned using the motorized focusing and turret. After selecting test parameters on the touch screen, the diamond indenter applies the desired load. The high-resolution camera captures the indentation image, which is analyzed by VIDAS 2.0 for hardness value calculations and report generation.

Q: When should I use the VHT-DT Series for material assessment?

A: This tester is ideal for micro hardness evaluation of metals, alloys, and a variety of other materials, especially in research laboratories, metallurgical analysis, and quality control environments where compliance with ISO and ASTM standards is required.

Q: Where can data from the Vickers Hardness Tester be stored or exported?

A: Test data can be securely stored in the devices internal memory or exported via USB to external storage. The integrated software allows reports and data to be exported in PDF or Excel format for sharing and archiving.

Q: What benefits does the VIDAS 2.0 software provide?

A: VIDAS 2.0 software enables advanced image analysis, automated calculation of hardness values, graphical data presentation, and comprehensive statistical reporting. This enhances result accuracy and simplifies the documentation process, supporting efficient decision-making in quality control.

Q: How is specimen alignment and focusing achieved during testing?

A: The tester utilizes motorized focusing and indentation alignment, ensuring precise adjustments for each specimen. The automated turret selects objective lenses and the indenter, streamlining the process and ensuring repeatable, accurate results.

Q: What safety and protection features are included in the VHT-DT Series?

A: The system is equipped with overload protection and power surge protection to ensure reliable operation and safeguard both the instrument and testing data during laboratory use.
