Digital Vickers Hardness Tester (VHT-D Series with Vidas 2.0)

Name: Digital Vickers Hardness Tester (VHT-D Series with Vidas 2.0)
Brand: OM ENGINEERING INSTRUMENTS
Price: 1 INR
Availability: InStock

Price 1 INR/ Number

Get a Price/Quote

MOQ : 1 Number

Digital Vickers Hardness Tester (VHT-D Series with Vidas 2.0) Specification

Frequency
50-60 Hz

Test Range
5-3000 HV

Response Time
<5 s

Max Height
200 mm

Measuring Range
5-3000 HV

Operating Voltage
220V

Equipment Type
Digital Vickers Hardness Tester

Mounting Type
Benchtop

Humidity
≤85% RH

Port Size
Standard

Temperature
10°C - 30°C

Interface Type
USB, RS232

Power Supply
AC220V±5% 50-60Hz

Dimension (L*W*H)
585X200X630 Millimeter (mm)

Accuracy
±1%

Application
Metal Material Hardness Testing

Features
Auto Turret, Auto Measurement, Built-in Printer

Automation Grade
Automatic

Hardness
5-3000 HV

Number of Specimens
Single or Multiple

Specimen Size
Max 200 mm Height

Display Type
Digital LCD Display

Resolution
0.1 HV

Usage
Hardness Test of Metals and Alloys

Capacity
High Precision Measurement

Machine Weight
35 Kilograms (kg)

Test Speed
Adjustable

Test Width
200 mm

Test Stroke
Up to 100 mm

Control Mode
Digital/Automatic

Digital Vickers Hardness Tester (VHT-D Series with Vidas 2.0) Trade Information

Minimum Order Quantity
1 Number

Payment Terms
Cheque, Telegraphic Transfer (T/T)

Supply Ability
1 Number Per Day

Delivery Time
1 Week

Main Domestic Market
All India

About Digital Vickers Hardness Tester (VHT-D Series with Vidas 2.0)

Features

DIGITAL EYEPIECE :Equipped with 10x Digital Eyepiece to directly measure the length of the diagonal. The hardness value can be displayed directly and there is no need to enter the length of the diagonal.

CAMERA PORT :Machine equipped with dual optical channel, one optical channel for 10X eyepiece and another optical channel is for camera by which machine can be upgraded into computerized model. Both optical channel works simultaneously.

ILLUMINATION SYSTEM :Halogen illumination unit with adjustable intensity gives very clear images and can be also used as a simple microscope. Halogen illumination unit enter stand by mode after a certain period of inactivity which gives it a long service life and low power consumption.

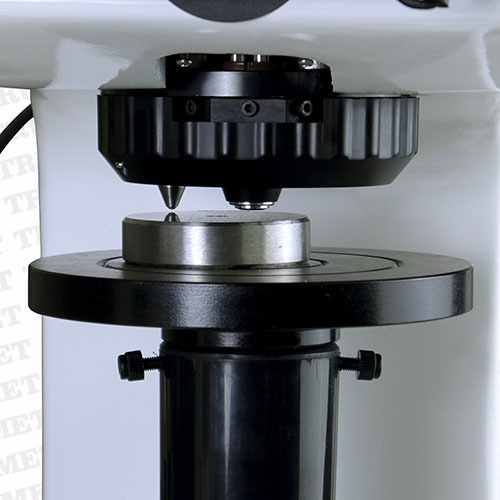

TURRET MECHANISM :Equipped with manual turret mechanism. The position of the indenter and the objective lens can be automatically switched using touch panel.

DATA OUTPUT :Equipped with built-in thermal printer to take the print out the hardness result.

TEST FORCE :Wide range of test force can be selected with external force selection knob. The test force is automatically displayed on the 7 inch LCD touch display.

LCD TOUCH SCREEN PANEL :7 Inch LCD touch screen can visually display the hardness value, conversion hardness, test force, dwell time, statistical data, upper & lower limit and brightness of optical system.

EMERGENCY SWITCH :Equipped with emergency stop switch.

High Precision and Automation

The VHT-D Series utilizes a Vickers diamond indenter and advanced optical system to deliver consistent, high-accuracy hardness measurements. Automatic functions, including auto turret and auto measurement, streamline testing procedures, reducing operator intervention and ensuring repeatable results. The system is suitable for various metal alloys, providing versatile application in quality assurance processes.

Comprehensive Digital Integration

Equipped with a digital LCD display, USB, and RS232 interfaces, the hardness tester ensures seamless data management and output. The included VIDAS 2.0 image analysis software offers in-depth evaluation and documentation capabilities, enhancing workflow efficiency. This integration supports connectivity with printers and PCs, facilitating detailed reporting and traceability.

User-Friendly Operation and Compliance

With adjustable test speed, LED cold source lighting, and an intuitive digital control panel, the tester is engineered for ease of use. The system adheres to top industry standards, including ISO6507 and ASTM E92/E384, making it reliable for both research and industrial applications. Its compact benchtop design and ergonomic features support flexible laboratory setups.

FAQs of Digital Vickers Hardness Tester (VHT-D Series with Vidas 2.0):

Q: How does the Digital Vickers Hardness Tester (VHT-D Series) operate?

A: The tester operates by applying a defined load using a Vickers diamond indenter onto a metal specimen. The indentation is then measured using high-magnification optics and digitally displayed with high resolution (0.1 m). Automated features and VIDAS 2.0 software facilitate fast, repeatable, and precise hardness evaluations.

Q: What materials can be tested with this Vickers Hardness Tester?

A: This instrument is primarily designed for hardness testing of metallic materials and alloys. The broad test range (5-3000 HV) ensures suitability for soft to hard metals, making it ideal for quality inspection in manufacturing and research laboratories.

Q: When should I use the auto measurement and auto turret features?

A: Auto measurement and auto turret should be used for large series of tests or when testing multiple points on a specimen. These features significantly reduce manual interventions, saving time and improving both the efficiency and repeatability of hardness measurements.

Q: Where is the data from the hardness tests stored and how can it be exported?

A: Test data is stored digitally within the device and can be quickly exported via USB or RS232 interfaces. Reports and images generated by VIDAS 2.0 software can be sent to printers or computers for documentation and further analysis, supporting both local and networked workflows.

Q: What is the process for testing a specimen using this device?

A: First, place the specimen (up to 200 mm in height) on the stage. Choose the desired objective, set up test parameters with the digital control panel, and initiate the test. The instrument indents the sample, measures the impression, and automatically generates digital results. Data can then be saved or printed as needed.

Q: What are the main benefits of using this Digital Vickers Hardness Tester?

A: The main benefits include high measurement accuracy (1%), detailed digital documentation, rapid response time (<5 s), automated operation, and compliance with international standards. The tester is well-suited for precise, efficient hardness measurement in industries and laboratories requiring reliable quality control.

Q: Who can use or benefit from this tester in India?

A: Dealers, exporters, manufacturers, retailers, suppliers, and wholesalersespecially those involved with metal hardness inspectionwill benefit greatly. It is also an excellent addition for research laboratories and quality control departments seeking trusted, standards-compliant results.
