Semi Automatic Touch Screen Micro Vickers Hardness Tester (HT-1000ADT-XY with Vidas 5.0)

Send Inquiry

Request To Call Back

Semi Automatic Touch Screen Micro Vickers Hardness Tester (HT-1000ADT-XY with Vidas 5.0)

Name: Semi Automatic Touch Screen Micro Vickers Hardness Tester (HT-1000ADT-XY with Vidas 5.0)
Brand: OM ENGINEERING INSTRUMENTS
Price: 1 INR
Availability: InStock

Price 1 INR/ Number

Get a Price/Quote

MOQ : 1 Number

Semi Automatic Touch Screen Micro Vickers Hardness Tester (HT-1000ADT-XY with Vidas 5.0) Specification

Automation Grade
Semi Automatic

Max Height
70 mm

Resolution
0.01 μm

Dimension (L*W*H)
530X200X530 Millimeter (mm)

Measuring Range
1-3000 HV

Display Type
Touch Screen LCD

Specimen Size
Height ≤70 mm, Depth ≤110 mm

Application
Micro Hardness Testing for Metals, Carburized Layers, Coatings, etc.

Accuracy
Complies with GB/T4340, ISO6507, ASTM E384, JIS B7725 standards

Power Supply
AC220V±5% 50-60Hz

Hardness
Micro Vickers (HV)

Frequency
50-60 Hz

Temperature
10°C~30°C

Response Time
Immediate after Indentation

Humidity
≤80%

Features
XY Auto Stage, Auto Turret, Data Memory, Analysis Software (Vidas 5.0), Touch Screen

Interface Type
USB, RS232

Operating Voltage
AC220V ±5%

Equipment Type
Micro Vickers Hardness Tester

Mounting Type
Bench-top

Test Range
1HV~2967HV

Usage
Micro Vickers Hardness Measurement

Machine Weight
35 Kilograms (kg)

Control Mode
Touch Screen Semi Automatic

Semi Automatic Touch Screen Micro Vickers Hardness Tester (HT-1000ADT-XY with Vidas 5.0) Trade Information

Minimum Order Quantity
1 Number

Supply Ability
1 Number Per Day

Delivery Time
1 Week

Main Export Market(s)
Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa

Main Domestic Market
All India

About Semi Automatic Touch Screen Micro Vickers Hardness Tester (HT-1000ADT-XY with Vidas 5.0)

Features

DIGITAL EYEPIECE :Equipped with 10x Digital Eyepiece to directly measure the length of the diagonal. The hardness value can be displayed directly and there is no need to enter the length of the diagonal.

CAMERA PORT :Machine equipped with dual optical channel. 5 MP USB Camera is connected to one of the dual optical channels, other optical channel is for 10X eyepiece. Both optical channel works simultaneously.

ILLUMINATION SYSTEM :Halogen illumination unit with adjustable intensity. gives very clear images and can be also used as a simple microscope. Halogen illumination unit enter stand by mode after a certain period of inactivity which gives it a long service life and low power consumption.

TEST FORCE :Wide range of test force (10gm to 1000gm) can be selected with external force selection knob. The test force is automatically displayed on the 7 inch LCD touch display as well as in PC.

DATA OUTPUT :Equipped with built is thermal printer to take the print out the hardness result USB port is also available to get the data in pendrive.

AUTO TURRET MECHANISM :Equipped with auto turret mechanism. Auto turret perform a series of operation and measuring lens automatically comes back to central position after making indentation. The position of the indenter and the objective lens can be automatically switched using touch panel.

Z-AXIS LIFTING SYSTEM :Side-Ways lifting system makes the z-axis movement more stable and accurate.

LCD TOUCH SCREEN PANEL :7 Inch LCD touch screen can visually display the hardness value, conversion hardness, test force, dwell time, statistical data, upper & lower limit and brightness of optical system.

EMERGENCY SWITCH :Equipped with emergency stop switch.

Intuitive Touch Screen Operation

Navigate tests easily using the full-featured LCD touch screen interface. The semi-automatic controls and real-time data display minimize operator error and enhance productivity. Adjust settings, access results, and manage files seamlessly, making the entire testing process efficient and user-friendly.

Advanced Hardness Analysis with Vidas 5.0

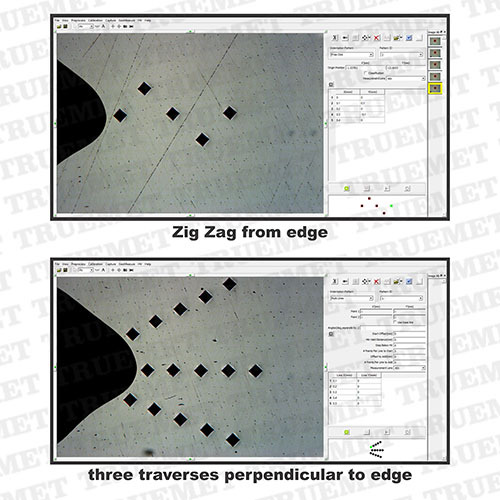

The included Vidas 5.0 software supports precise hardness calculations, graphical data representation, and systematic storage of measurements. This advanced tool ensures full traceability and quick analysis, making reporting and results interpretation straightforward for quality assurance professionals.

FAQs of Semi Automatic Touch Screen Micro Vickers Hardness Tester (HT-1000ADT-XY with Vidas 5.0):

Q: How does the semi automatic touch screen function benefit the testing process?

A: The semi-automatic touch screen interface streamlines setup, operation, and data management. Users can select test parameters, monitor progress, and view results on the touch screen, reducing manual input and improving efficiency while minimizing operational mistakes.

Q: What materials can be tested using the HT-1000ADT-XY Micro Vickers Hardness Tester?

A: This model is suitable for micro hardness testing of metals, carburized layers, coatings, and similar specimens. It accommodates samples up to 70 mm in height and 110 mm in depth, providing versatile application across research labs and industrial quality control.

Q: When should I use the automatic focusing system versus manual focusing?

A: Automatic focusing is ideal for routine measurements, quick sample changes, and repetitive tasks, ensuring consistent results without manual intervention. Use manual focusing when working with challenging samples or when finer control over the focal plane is required.

Q: Where can I retrieve and store my test data?

A: Test data can be stored digitally within the instruments internal memory. Additionally, results are easily exported via USB or RS232 interfaces for external storage, further analysis, or reporting using the integrated Vidas 5.0 software.

Q: What is the process for conducting a hardness measurement on this tester?

A: To perform a test, mount the specimen on the XY stage, select the desired force and objective lens, position the target area, and initiate indentation through the touch screen. The machine automatically calculates and displays the hardness value, which is then stored digitally.

Q: What are the benefits of using the Vidas 5.0 analysis software?

A: Vidas 5.0 software provides automated measurement, real-time graphical representation, precise calculation, and reliable data archiving. It supports complete traceability and simplifies the documentation and analysis necessary for quality assurance or research purposes.
