Touch Screen Micro Vickers Hardness Tester (HT-1000T)

Send Inquiry

Request To Call Back

Touch Screen Micro Vickers Hardness Tester (HT-1000T)

Name: Touch Screen Micro Vickers Hardness Tester (HT-1000T)
Brand: OM ENGINEERING INSTRUMENTS
Price: 1 INR
Availability: InStock

Get a Price/Quote

MOQ : 1 Number

Touch Screen Micro Vickers Hardness Tester (HT-1000T) Specification

Interface Type
USB, RS232

Measuring Range
1 HV – 2967 HV

Temperature
15°C – 40°C

Humidity
≤85% RH

Power Supply
AC220V±5% 50-60Hz

Specimen Size
Maximum height 70 mm, depth 98 mm

Automation Grade
Semi-automatic

Features
Touch screen display, Digital output, Data storage, Auto-turret, Built-in printer, Video measuring system (optional)

Max Height
70 mm

Resolution
0.01 um

Test Range
5 gf – 1000 gf

Display Type
Touch screen LCD display

Port Size
Standard sample aperture

Hardness
Micro Vickers (HV0.005~HV1)

Accuracy
±1%

Response Time
Instantaneous, less than 1 s

Operating Voltage
AC 220 V ±5%

Gas Pressure
No gas supply required

Equipment Type
Touch Screen Micro Vickers Hardness Tester

Mounting Type
Benchtop

Number of Specimens
1 specimen at a time

Frequency
50 – 60 Hz

Dimension (L*W*H)
530X200X530 Millimeter (mm)

Application
Measuring microhardness of metals, ceramics, composite materials etc.

Usage
Laboratory/Industrial

Capacity
5 gf, 10 gf, 20 gf, 25 gf, 50 gf, 100 gf, 200 gf, 300 gf, 500 gf, 1000 gf

Machine Weight
35 Kilograms (kg)

Test Speed
Variable, adjustable as per requirement

Test Width
70 mm (approx)

Test Stroke
Up to 70 mm

Control Mode
Touch screen + Manual key operation

Touch Screen Micro Vickers Hardness Tester (HT-1000T) Trade Information

Minimum Order Quantity
1 Number

Payment Terms
Cheque, Telegraphic Transfer (T/T)

Supply Ability
1 Number Per Day

Delivery Time
1 Week

Main Domestic Market
All India

About Touch Screen Micro Vickers Hardness Tester (HT-1000T)

Features

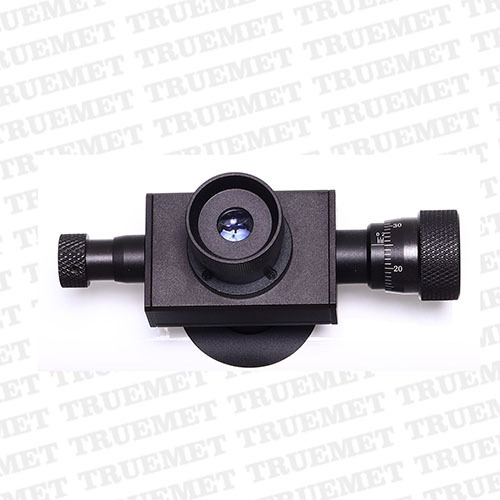

MANUAL EYEPIECE :Equipped with 10x Manual Eyepiece to measure the length of diagonal. The hardness value can be displayed directly on the LCD screen by entering the indentation diagonal length.

CAMERA PORT :Machine equipped with dual optical channel, one optical channel for 10X eyepiece and another optical channel is for camera by which machine can be upgraded into computerized model. Both optical channel works simultaneously

ILLUMINATION SYSTEM :Halogen illumination unit with adjustable intensity. gives very clear images and can be also used as a simple microscope. Halogen illumination unit enter stand by mode after a certain period of inactivity which gives it a long service life and low power consumption.

TEST FORCE :Wide range of test force (10gm to 1000gm) can be selected with external force selection knob. The test force is automatically displayed on the 7 inch LCD touch display.

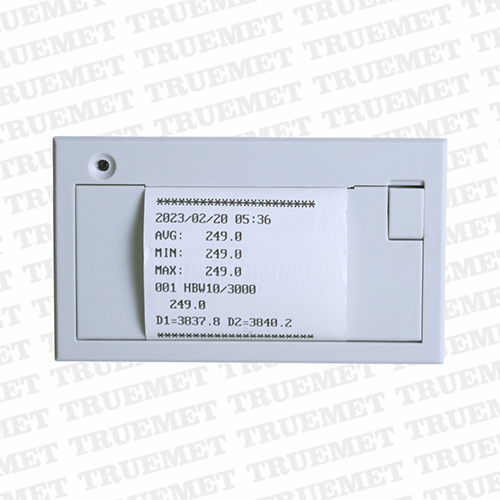

DATA OUTPUT :Equipped with built-in thermal printer to take the print out the hardness result.

TURRET MECHANISM :Equipped with manual turret mechanism. The position of the indentor and objective lens can be switched manually.

Z-AXIS LIFTING SYSTEM :Side-Ways lifting system makes the z-axis movement more stable and accurate.

LCD TOUCH SCREEN PANEL :7 Inch LCD touch screen can visually display the hardness value, hardness conversion (4 conversion scales can be displayed at the same time), test force, dwell time, statistical data, upper & lower limit and brightness of optical system.

EMERGENCY SWITCH :Equipped with emergency stop switch.

Advanced Measurement Accuracy

With an accuracy of 1% and a resolution of 0.01 m, the HT-1000T Touch Screen Micro Vickers Hardness Tester ensures highly reliable measurements. The combination of a Vickers diamond indenter and motorized turret enhances repeatability in testing, while the LED cold light source provides clear illumination to minimize errors during specimen evaluation.

User-Friendly Operation

The HT-1000T features a sensitive touch screen LCD display alongside manual key controls, catering to both novice and experienced users. Coarse and fine adjustment focusing methods, plus an automatic turret switch, streamline the workflow. The touch interface enables quick parameter setup and instant data recall, enhancing efficiency during repeated testing tasks.

Flexible Application and Expansion

Designed for laboratory and industrial applications, this tester accommodates specimens up to 70 mm in height and 98 mm in depth. The system can be customized with optional accessoriessuch as a video measuring system, integrated printer, or digital camerafor advanced documentation and analysis, meeting the evolving needs of materials testing professionals.

FAQs of Touch Screen Micro Vickers Hardness Tester (HT-1000T):

Q: How does the motorized turret on the HT-1000T improve the testing process?

A: The motorized, automatic turret switch allows users to seamlessly change between objectives and indenter positions without manual intervention. This improves speed and consistency during sequential measurements, reducing handling errors and increasing operational efficiency.

Q: What types of materials can be tested with the HT-1000T Micro Vickers Hardness Tester?

A: The HT-1000T is suitable for measuring the microhardness of a wide range of materials, including metals, ceramics, and composite materials, making it an excellent choice for both research laboratories and production environments.

Q: When should I use the coarse and fine adjustment focusing methods?

A: Coarse adjustment is recommended for initially bringing the specimen into general focus, while the fine adjustment should be used for precise focusing, particularly when working with the high-magnification 40x objective for clear indentation observation and accurate readings.

Q: Where can the data obtained from the tester be stored or exported?

A: Test results can be stored digitally within the device. Data export is facilitated through USB and RS232 interfaces, and users can also utilize optional data processing and analysis software or print results directly with the optional built-in printer.

Q: What is the benefit of the touch screen LCD display?

A: The touch screen interface provides intuitive navigation through settings, test configuration, and results retrieval. It significantly simplifies the user experience, allows for rapid adjustments, and enables instant access to stored test results.

Q: How is specimen mounting handled and what sizes are accommodated?

A: Test specimens are mounted on the benchtop unit, accommodating samples up to 70 mm in height and 98 mm in depth. The standard sample aperture and up to 70 mm test stroke ensure compatibility with most metallographic samples.

Q: What makes the HT-1000T suitable for laboratory and industrial environments?

A: Its robust design, semi-automatic operation, variety of load capacities (5 gf 1000 gf), precise measurement range (1 HV 2967 HV), and easy data management make it adaptable for rigorous laboratory analysis as well as industrial quality control applications.
