Computerized Digital Touch Screen Vickers Hardness Tester (VHT-ADT Series with VIDAS 4.0)

Send Inquiry

Request To Call Back

Computerized Digital Touch Screen Vickers Hardness Tester (VHT-ADT Series with VIDAS 4.0)

Get a Price/Quote

MOQ : 1 Number

Computerized Digital Touch Screen Vickers Hardness Tester (VHT-ADT Series with VIDAS 4.0) Specification

Hardness
Vickers (HV)

Application
Metallography, Quality Control, Material Hardness Testing

Dimension (L*W*H)
585X200X630 Millimeter (mm)

Frequency
50-60 Hz

Port Size
Standard USB/RS232 ports for Data Transfer

Specimen Size
Max 200 mm diameter

Features
Automatic Turret, Motorized Loading, Auto Measurement, VIDAS 4.0 Software

Response Time
≤1 Second

Power Supply
AC220V±5% 50-60Hz

Interface Type
USB, LAN, RS232

Temperature
10°C - 35°C Operating Range

Humidity
≤85% RH

Max Height
180 mm (specimen)

Mounting Type
Table Top

Equipment Type
Computerized Digital Vickers Hardness Tester

Test Range
5 gf to 3000 gf (Vickers Indentation)

Accuracy
±1.5% of Reading

Resolution
0.1 HV

Automation Grade
Fully Automatic

Display Type
8 inch Color Digital Touch Screen

Number of Specimens
Single/Multiple with Automatic Sequencing

Measuring Range
HV 1 ~ HV 3000

Operating Voltage
220V AC ±5%

Usage
Hardness Measurement of Metals/Alloys

Capacity
User dependent

Machine Weight
42 Kilograms (kg)

Test Speed
Variable (User-Adjustable)

Test Width
Up to 200 mm

Test Stroke
Up to 100 mm

Control Mode
Digital Touch Screen with VIDAS 4.0 Automation

Computerized Digital Touch Screen Vickers Hardness Tester (VHT-ADT Series with VIDAS 4.0) Trade Information

Minimum Order Quantity
1 Number

Supply Ability
1 Number Per Day

Delivery Time
1 Week

Main Export Market(s)
Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa

Main Domestic Market
All India

About Computerized Digital Touch Screen Vickers Hardness Tester (VHT-ADT Series with VIDAS 4.0)

Features

DIGITAL EYEPIECE : Equipped with 10x Digital Eyepiece to directly measure the length of the diagonal. The hardness value can be displayed directly and there is no need to enter the length of the diagonal. :

CAMERA PORT :Machine equipped with dual optical channel, one optical channel for 10X eyepiece and another optical channel is for camera by which machine can be upgraded into computerized / computer controlled model. Both optical channel works simultaneously

ILLUMINATION SYSTEM :Halogen illumination unit with adjustable intensity gives very clear images and can be also used as a simple microscope. Halogen illumination unit enter stand by mode after a certain period of inactivity which gives it a long service life and low power consumption.

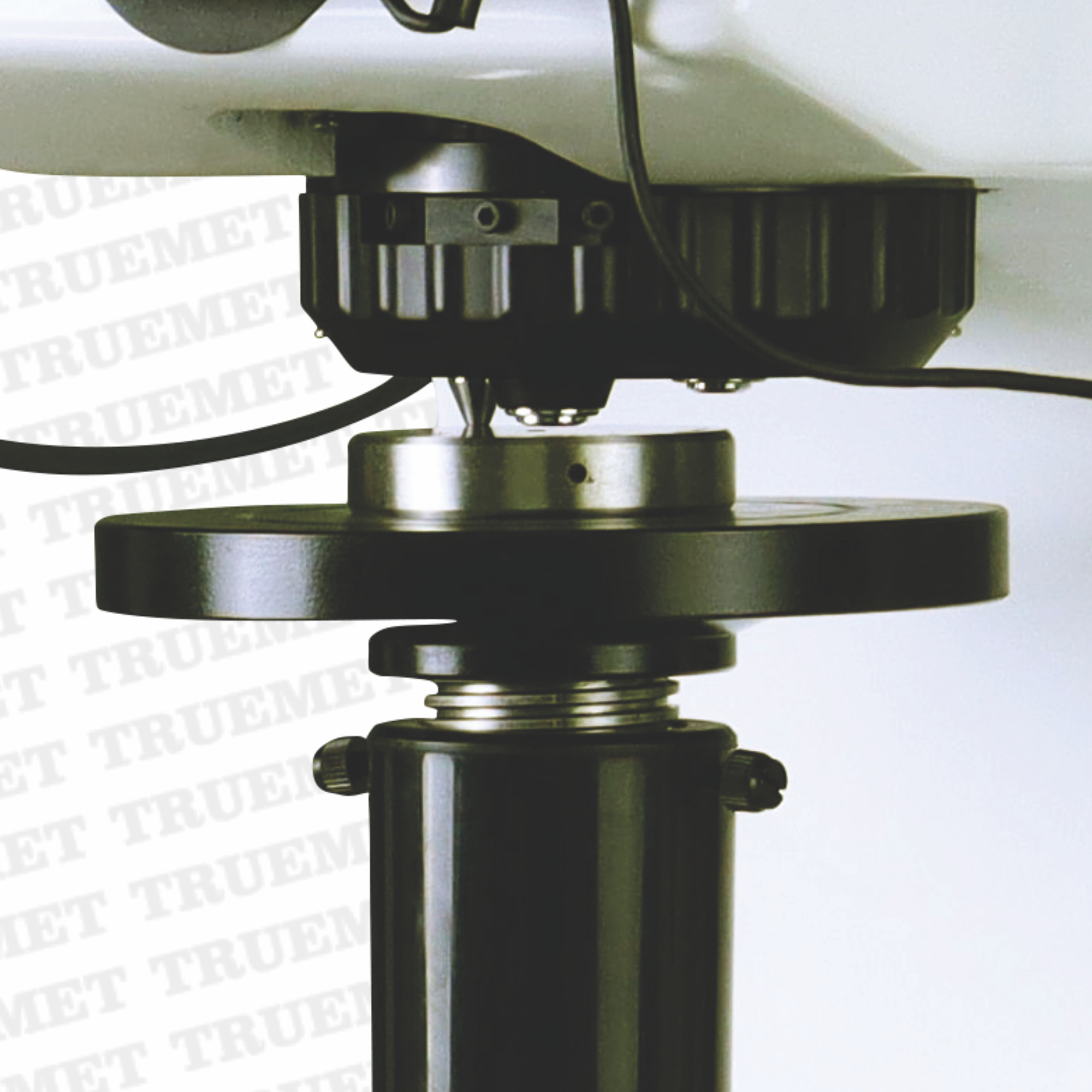

AUTO TURRET MECHANISM :Equipped with auto turret mechanism. Auto turret perform a series of operation and measuring lens automatically comes back to central position after making indentation. The position of the indenter and the objective lens can be automatically switched using touch panel.

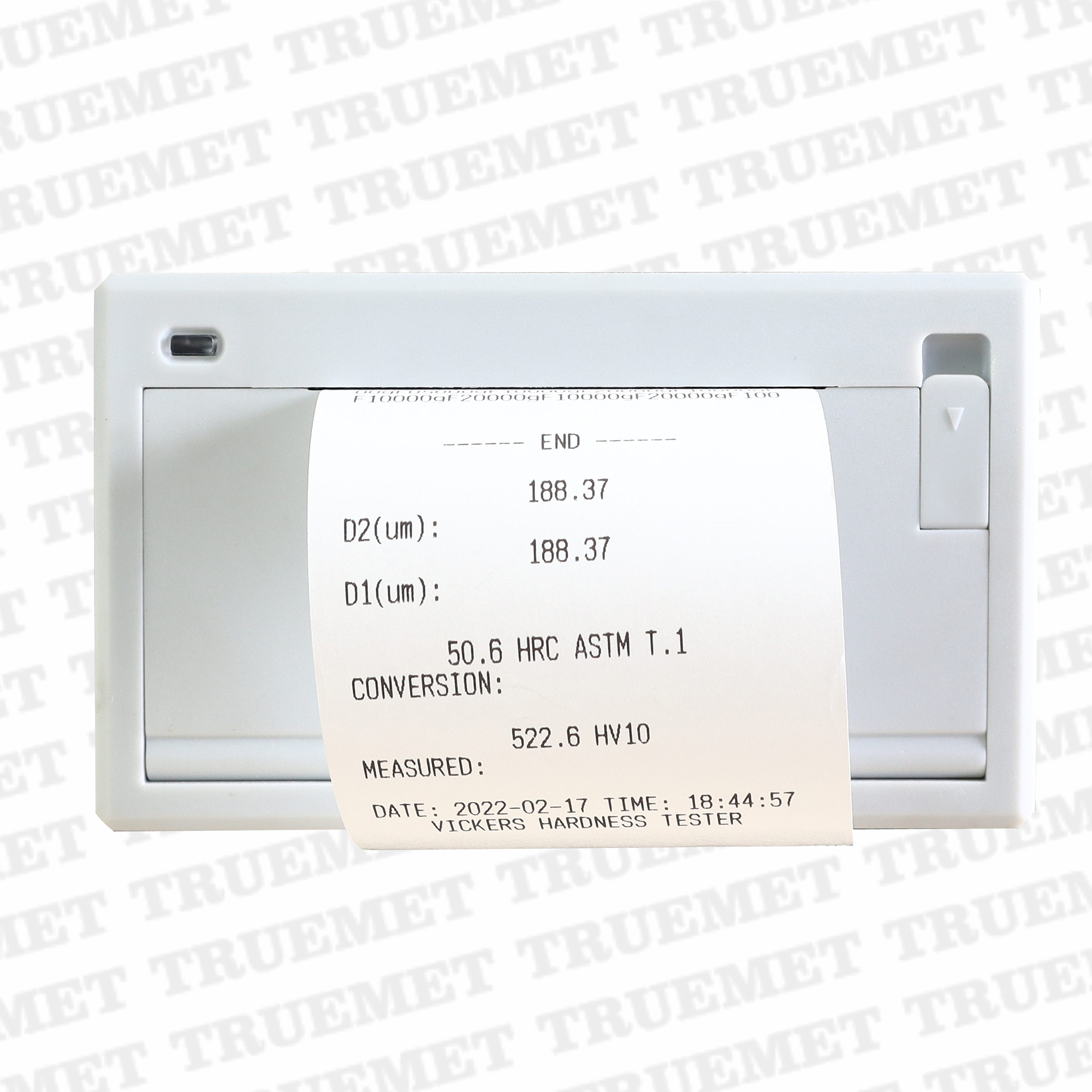

DATA OUTPUT :Equipped with built is thermal printer to take the print out the hardness result USB port is also available to get the data in pendrive

TEST FORCE :Wide range of test force can be selected with external force selection knob. The test force is automatically displayed on the 7 inch LCD touch display.

LCD TOUCH SCREEN PANEL :7 Inch LCD touch screen can visually display the hardness value, conversion hardness, test force, dwell time, statistical data, upper & lower limit and brightness of optical system.

EMERGENCY SWITCH :Equipped with emergency stop switch.

Advanced Touch Screen Automation

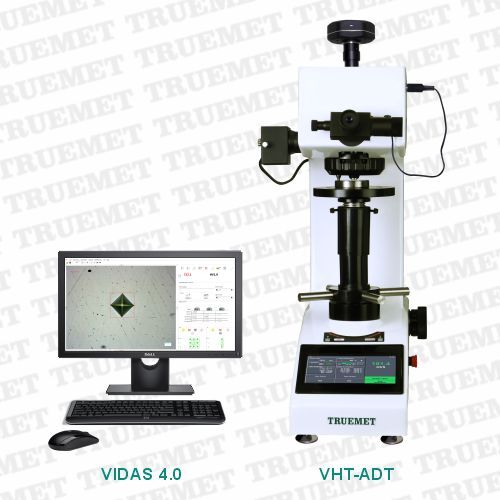

Experience seamless measurement with the 8-inch color digital touch screen powered by VIDAS 4.0 software. Automatic turret and motorized loading simplify testing processes, allowing users to select and manage multiple test parameters directly, boosting productivity and accuracy in material analysis.

Comprehensive Data Management

Efficiently store and manage test results and images on the devices large internal memory. Data output includes digital reports with image capture, while standard USB, LAN, and RS232 ports facilitate fast transfer and sharing, ensuring traceable and secure documentation for quality control.

Exceptional Measurement Capabilities

Equipped with precision X-Y stage movement, the VHT-ADT tester permits variable test speeds and user-adjustable test ranges from 5 gf to 3000 gf. With high accuracy (1.5% of reading) and resolution (0.1 HV), it achieves reliable results on specimens up to 200 mm diameter and 180 mm height.

FAQs of Computerized Digital Touch Screen Vickers Hardness Tester (VHT-ADT Series with VIDAS 4.0):

Q: How does the VHT-ADT Series ensure accurate Vickers hardness measurements?

A: The device uses a Vickers diamond indenter, precision optics, and motorized loading for consistent indentation. Automatic and manual calibration options guarantee compliance with ISO and ASTM standards, while its embedded VIDAS 4.0 system ensures reliable digital results.

Q: What are the advantages of using the LED cold light source in hardness testing?

A: LED cold light provides clear, shadow-free illumination for accurate indentation observation. This enhances image quality for digital report capture and ensures precise measurement results across various specimen surfaces.

Q: When should I consider using the automatic calibration feature?

A: Automatic calibration is recommended for routine daily testing or when switching specimen types to maintain measurement reliability. It streamlines the process and reduces manual intervention, ensuring consistent accuracy across multiple samples.

Q: Where can this tester be used most effectively?

A: The VHT-ADT Series is ideal for laboratories, metallography departments, and manufacturing or quality control environments. Its compliance with international standards and flexible data output options suit both research facilities and industrial production sites.

Q: How does the touch screen and VIDAS 4.0 software improve the testing process?

A: The 8-inch digital touch screen and embedded VIDAS 4.0 interface provide intuitive control and automation of test parameters, sequencing, and reporting. Multi-language support and rapid response times simplify complex analyses, making operation straightforward for users.

Q: What are the benefits of the large internal memory and image capture capability?

A: Users can securely store extensive test data and high-quality images directly on the device. This facilitates efficient record-keeping, report generation, and traceability, especially valuable for auditing and long-term quality assurance.
