Digital Touch Screen Micro Vickers Hardness Tester (HT-1000DT)

Name: Digital Touch Screen Micro Vickers Hardness Tester (HT-1000DT)
Brand: OM ENGINEERING INSTRUMENTS
Price: 1 INR
Availability: InStock

Price 1 INR/ Number

Get a Price/Quote

MOQ : 1 Number

Digital Touch Screen Micro Vickers Hardness Tester (HT-1000DT) Specification

Number of Specimens
1

Power Supply
AC220V±5% 50-60Hz

Operating Voltage
220V

Resolution
0.01 HV

Specimen Size
Height ≤100 mm

Accuracy
±1%

Frequency
50-60 Hz

Features
Auto turret, auto measurement, touch screen operation, data storage

Response Time
<1 sec

Hardness
Micro Vickers, HV

Equipment Type
Micro Vickers Hardness Tester

Max Height
100 mm

Mounting Type
Benchtop

Port Size
Standard

Interface Type
RS232

Automation Grade
Semi-automatic

Display Type
Digital Touch Screen

Temperature
10°C - 35°C

Dimension (L*W*H)
530X200X530 Millimeter (mm)

Test Range
5 HV to 3000 HV

Application
Microhardness measurement of metals, ceramics, coatings, etc.

Measuring Range
5-3000 HV

Humidity
≤85% RH

Usage
Laboratory/Industrial

Machine Weight
35 Kilograms (kg)

Test Speed
Auto/Adjustable

Test Width
100 mm

Test Stroke
Max 100 mm

Control Mode
Digital Touch Screen

Digital Touch Screen Micro Vickers Hardness Tester (HT-1000DT) Trade Information

Minimum Order Quantity
1 Number

Supply Ability
1 Number Per Day

Delivery Time
1 Week

Main Export Market(s)
Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa

Main Domestic Market
All India

About Digital Touch Screen Micro Vickers Hardness Tester (HT-1000DT)

Features

DIGITAL EYEPIECE :Equipped with 10x Digital Eyepiece to directly measure the length of the diagonal. The hardness value can be displayed directly and there is no need to enter the length of the diagonal.

CAMERA PORT :Machine equipped with dual optical channel, one optical channel for 10X eyepiece and another optical channel is for camera by which machine can be upgraded into computerized model. Both optical channel works simultaneously.

ILLUMINATION SYSTEM :Halogen illumination unit with adjustable intensity gives very clear images and can be also used as a simple microscope. Halogen illumination unit enter stand by mode after a certain period of inactivity which gives it a long service life and low power consumption.

TEST FORCE :Wide range of test force (10gm to 1000gm) can be selected with external force selection knob. The test force is automatically displayed on the 7 inch LCD touch display.

DATA OUTPUT :Equipped with built is thermal printer to take the print out the hardness result USB port is also available to get the data in pendrive.

TURRET MECHANISM :Equipped with manual turret mechanism. The position of the indentor and objective lens can be switched manually.

Z-AXIS LIFTING SYSTEM :Side-Ways lifting system makes the z-axis movement more stable and accurate.

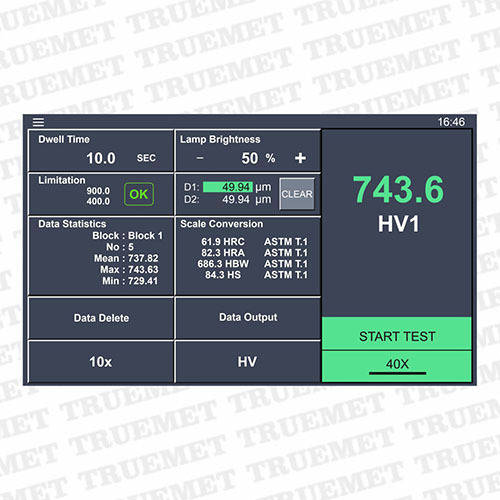

LCD TOUCH SCREEN PANEL :7 Inch LCD touch screen can visually display the hardness value, hardness conversion (4 conversion scales can be displayed at the same time), test force, dwell time, statistical data, upper & lower limit and brightness of optical system.

EMERGENCY SWITCH :Equipped with emergency stop switch.

Advanced Micro Vickers Hardness Testing

HT-1000DT is equipped with a digital touch screen interface, providing clear and instant hardness readings. The auto turret and measurement features facilitate efficient and repeatable testing. Its versatile test force selection suits various materials, while the flexible magnification options allow for precise observation and measurement. User-friendly controls make it accessible for both experienced technicians and new operators.

Flexible Data Management and Connectivity

This tester supports robust data storage with export options via RS232 or USB. The internal memory ensures you can save and access historical test results conveniently, while optional thermal printers help generate instant hard copies. Built-in microhardness software, along with multi-language support, streamlines reporting and integration into diverse lab environments.

Reliable Performance in Diverse Conditions

Designed for consistent accuracy (1%) and a wide measurement range (5 HV to 3000 HV), HT-1000DT operates effectively in laboratory or industrial settings. Its adjustable LED illumination and environmental tolerances (humidity 85%, temperature 10C35C) ensure reliable operation. The benchtop design and robust build make it suitable for regular use by dealers, exporters, and manufacturers across India.

FAQs of Digital Touch Screen Micro Vickers Hardness Tester (HT-1000DT):

Q: How do I operate the Digital Touch Screen Micro Vickers Hardness Tester (HT-1000DT)?

A: Operation is straightforwardselect the desired test force on the digital touch screen, place your specimen (up to 100 mm high) on the stage, and initiate the test. The auto turret and auto measurement features automate much of the process, while the digital display provides real-time hardness values.

Q: What types of materials can this tester measure?

A: The HT-1000DT is suitable for microhardness measurement of metals, ceramics, coatings, and other materials within its 53000 HV measuring range, making it ideal for both industrial and laboratory analyses.

Q: When should I use the different test forces (10 g to 1000 g)?

A: The selectable test forces allow adaptation to various sample hardness levels and thicknesses. Lower forces are ideal for delicate, thin specimens, while higher forces suit harder or thicker materials. Adjust the holding time as needed (560 seconds) for optimal results.

Q: Where can I store and export my measurement data?

A: Test data is stored in internal memory and can be exported via USB or RS232. Additionally, reports can be printed using an optional thermal printer. The built-in software supports data management and multilingual operation.

Q: What benefits does the digital touch screen control provide?

A: The digital touch screen simplifies navigation, test setup, and result viewing. It allows quick control over parameters like test force and holding time, and the immediate digital readout ensures accurate, timely results with less user training.

Q: Is this tester suitable for industrial lab environments?

A: Yes, the HT-1000DTs robust design, precise automation features, and environmental tolerances make it well-suited for laboratory and industrial use. Its benchtop mounting and accuracy (1%) support day-to-day operations for dealers, manufacturers, and research facilities.
