Digital Micro Vickers Hardness Tester (HT-1000AD)

Name: Digital Micro Vickers Hardness Tester (HT-1000AD)
Brand: OM ENGINEERING INSTRUMENTS
Price: 1 INR
Availability: InStock

Price 1 INR/ Number

Get a Price/Quote

MOQ : 1 Number

Digital Micro Vickers Hardness Tester (HT-1000AD) Specification

Display Type
Digital LCD display

Interface Type
RS232 / USB (optional)

Dimension (L*W*H)
530X200X530 Millimeter (mm)

Test Range
5gf-1000gf

Automation Grade
Automatic

Hardness
1~3000 HV

Humidity
≤ 90%

Power Supply
AC220V±5% 50-60Hz

Frequency
50-60 Hz

Specimen Size
Max 120mm

Features
Automatic turret, Data storage, Image analysis, Built-in printer (optional)

Equipment Type
Digital Micro Vickers Hardness Tester

Operating Voltage
AC220V ±5% 50-60Hz

Temperature
10°C – 30°C

Application
Microhardness measurement of small and thin specimens, surface coating, and microstructure evaluation

Measuring Range
1~3000 HV

Mounting Type
Benchtop

Max Height
120 mm

Response Time
Instantaneous

Resolution
0.1 HV

Accuracy
±1%

Usage
Laboratory, Industrial Analysis

Machine Weight
35 Kilograms (kg)

Control Mode
Digital/Automatic

Digital Micro Vickers Hardness Tester (HT-1000AD) Trade Information

Minimum Order Quantity
1 Number

Supply Ability
1 Number Per Day

Delivery Time
1 Week

Main Export Market(s)
Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa

Main Domestic Market
All India

About Digital Micro Vickers Hardness Tester (HT-1000AD)

Features

DIGITAL EYEPIECE :Equipped with 10x Digital Eyepiece to directly measure the length of the diagonal. The hardness value can be displayed directly and there is no need to enter the length of the diagonal.

CAMERA PORT :Machine equipped with dual optical channel, one optical channel for 10X eyepiece and another optical channel is for camera by which machine can be upgraded into computerized model. Both optical channel works simultaneously

ILLUMINATION SYSTEM :Halogen illumination unit with adjustable intensity gives very clear images and can be also used as a simple microscope. Halogen illumination unit enter stand by mode after a certain period of inactivity which gives it a long service life and low power consumption.

TEST FORCE :Wide range of test force (10gm to 1000gm) can be selected with external force selection knob. The test force is automatically displayed on the 75X100mm LCD Screen.

AUTO TURRET MECHANISM :Equipped with auto turret mechanism. Auto turret perform a series of operation and measuring lens automatically comes back to central position after making indentation. The position of the indenter and the objective lens can be automatically switched using touch panel.

Z-AXIS LIFTING SYSTEM :Side-Ways lifting system makes the z-axis movement more stable and accurate.

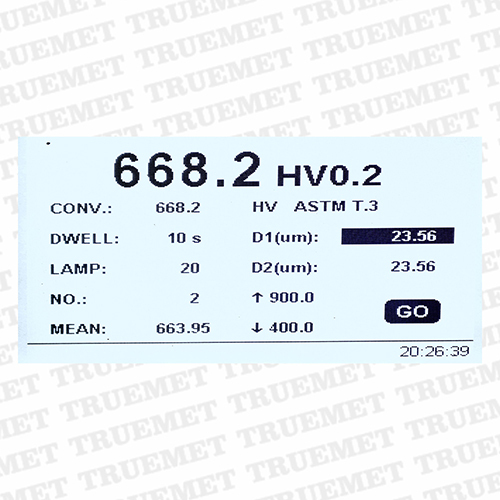

LCD SCREEN PANEL :75X100mm LCD screen can visually display the hardness value, conversion hardness, test force, dwell time, statistical data, upper & lower limit and brightness of optical system.

EMERGENCY SWITCH :Equipped with emergency stop switch.

Precision Microhardness Testing

Engineered for laboratory and industrial environments, the HT-1000AD offers precise measurement capabilities for microhardness testing. Its automatic digital controls, advanced optics, and programmable features support accurate evaluation of coatings, microstructures, and fine specimens. The wide measurement range and compliance with leading international standards make it reliable for critical quality control and research applications.

Seamless Automated Operation

The devices motorized turret and fully digital, programmable control simplify the hardness testing process. Automated application of the Vickers Diamond Indenter with programmable dwell times up to 99 seconds enhances repeatability and accuracy. The intuitive LCD display and integrated data analysis software streamline test management for users of varying skill levels.

Flexible Data Management

With flexible connectivity optionsRS232 or USBand built-in or exportable data management capabilities, users can analyze and archive test results efficiently. Optional built-in printer and image analysis further expand flexibility, ensuring seamless documentation and integration into laboratory information systems.

FAQs of Digital Micro Vickers Hardness Tester (HT-1000AD):

Q: How does the HT-1000AD Digital Micro Vickers Hardness Tester automate the testing process?

A: The HT-1000AD automates the testing process using a motorized turret and digital control for load, dwell, and unloading operations. Users can program dwell times up to 99 seconds, with the system applying and removing the load automatically, ensuring consistent and repeatable results.

Q: What types of specimens and applications is this hardness tester suitable for?

A: This tester is ideal for measuring the microhardness of small and thin specimens, surface coatings, and microstructural features in laboratory and industrial settings. Its high precision and fine load control make it suitable for research, quality control, and production analysis.

Q: When should I use the 10X or 40X objective lens during testing?

A: The 10X lens provides a broader overview for general positioning and low-magnification observation, while the 40X lens is best when higher magnification is needed for detailed measurement and precise indentation assessment, especially for smaller or more complex microstructures.

Q: Where can the HT-1000AD be installed and operated safely?

A: It is designed for benchtop mounting in laboratories, production control rooms, or industrial analysis sites. The tester operates efficiently in environments with humidity 90% and temperature ranging from 10 to 30C, with a stable AC220V (5%) power supply.

Q: What is the process for exporting and analyzing test data with this machine?

A: Test data can be exported via optional RS232 or USB interfaces. The built-in software enables users to store, analyze, and review microhardness test results. Optional features, such as an integrated printer and image analysis, further support comprehensive data management and documentation.

Q: How does compliance with ISO6507, ASTM E384, and JIS standards benefit users?

A: Adhering to these standards ensures that test results are globally recognized and reliable, facilitating quality assurance, regulatory compliance, and comparison of results across different laboratories and industries.

Q: What are the key benefits of using the HT-1000AD in laboratory or industrial environments?

A: Key benefits include high measurement accuracy (1%), rapid result display, automated and programmable testing, extensive data management options, and versatile mounting for different specimen typesmaking it a valuable tool for efficient and reliable microhardness evaluation.
