Digital Vickers Hardness Tester (VHT-D Series)

Name: Digital Vickers Hardness Tester (VHT-D Series)
Brand: OM ENGINEERING INSTRUMENTS
Price: 1 INR
Availability: InStock

Price 1 INR/ Number

Get a Price/Quote

MOQ : 1 Number

Digital Vickers Hardness Tester (VHT-D Series) Specification

Power Supply
AC220V±5% 50-60Hz

Dimension (L*W*H)
585X200X630 Millimeter (mm)

Machine Weight
35 Kilograms (kg)

Digital Vickers Hardness Tester (VHT-D Series) Trade Information

Minimum Order Quantity
1 Number

Supply Ability
1 Number Per Day

Delivery Time
1 Week

Main Export Market(s)
Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa

Main Domestic Market
All India

About Digital Vickers Hardness Tester (VHT-D Series)

Features

DIGITAL EYEPIECE :Equipped with 10x Digital Eyepiece to directly measure the length of the diagonal. The hardness value can be displayed directly and there is no need to enter the length of the diagonal.

CAMERA PORT :Machine equipped with dual optical channel, one optical channel for 10X eyepiece and another optical channel is for camera by which machine can be upgraded into computerized model. Both optical channel works simultaneously.

ILLUMINATION SYSTEM:Halogen illumination unit with adjustable intensity gives very clear images and can be also used as a simple microscope. Halogen illumination unit enter stand by mode after a certain period of inactivity which gives it a long service life and low power consumption.

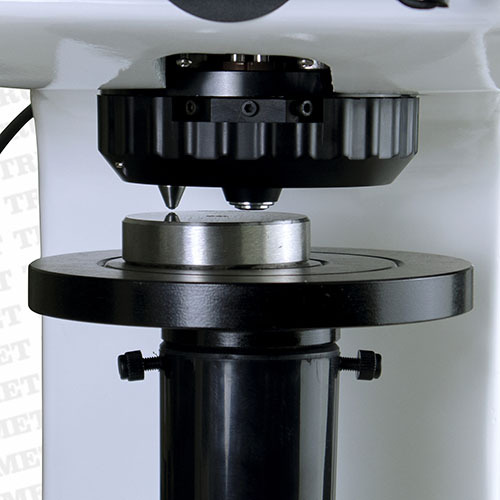

TURRET MECHANISM :Equipped with manual turret mechanism. The position of the indenter and the objective lens can be automatically switched using touch panel.

DATA OUTPUT :Equipped with built-in thermal printer to take the print out the hardness result.

TEST FORCE :Wide range of test force can be selected with external force selection knob. The test force is automatically displayed on the 7 inch LCD touch display.

LCD TOUCH SCREEN PANEL :7 Inch LCD touch screen can visually display the hardness value, conversion hardness, test force, dwell time, statistical data, upper & lower limit and brightness of optical system.

EMERGENCY SWITCH :Equipped with emergency stop switch.

Cutting-Edge Digital Vickers Hardness Analysis

The VHT-D Series ensures enhanced efficiency and precision in hardness measurement through automated loading, sample movement, and diagonal length calculation. Designed for contemporary labs, its intuitive touchscreen and rapid response deliver fast, user-friendly operation. The testers wide measurement range and adaptable specimen support make it versatile for diverse metallurgical applications.

Intuitive Digital Interface & Advanced Connectivity

Operate all testing functions via a modern LCD digital touchscreen, enabling quick adjustment of parameters and streamlined operations. Data export options, including USB and RS232, simplify recording and report sharing, while built-in software supports hardness conversion and custom report generation for comprehensive results documentation.

FAQs of Digital Vickers Hardness Tester (VHT-D Series):

Q: How does the automatic stage movement enhance the testing process?

A: Automatic stage movement allows the VHT-D Series to precisely position multiple specimens for testing without manual intervention, improving throughput and reducing the risk of operator error. This feature is especially beneficial for batch testing in lab environments.

Q: What is the process of conducting a Vickers hardness test with this machine?

A: The user selects the desired test force using the digital touch panel, mounts the specimen (up to 150 mm high), and allows the machines automatic loader and indenter to perform the test. The digital system measures the indentation, calculates the Vickers hardness value, and stores or exports the data.

Q: When would you use the programmable force selection feature?

A: Programmable force selection is useful when testing various materials that require different loading conditions. It accommodates a range from 5 g to 2 kg, allowing users to tailor the force application to specific sample hardness requirements for accurate measurements.

Q: Where can the VHT-D Series hardness tester be utilized?

A: This device is ideal for metallurgical testing, laboratory analysis, and industrial quality control settings where precise, repeatable hardness measurements on metals and related materials are essential. It is suitable for research institutions, manufacturing quality labs, and academic environments.

Q: What are the benefits of the digital touchscreen and data output capabilities?

A: The LCD touchscreen interface streamlines parameter setup, measurement monitoring, and results viewing. Data output via USB, RS232, or printer enables easy integration with lab information systems, facilitating efficient documentation and analysis.

Q: How does the automatic diagonal length measurement improve test accuracy?

A: Automatic diagonal measurement eliminates manual reading errors and ensures consistent evaluation of indentation size, resulting in more reliable and reproducible Vickers hardness values calculated by the onboard software.
