Price 1 INR/ Number

MOQ : 1 Number

Micro Vickers Hardness Tester (HT-1000) Specification

  • Frequency
  • 50-60Hz
  • Power Supply
  • AC220V±5% 50-60Hz
  • Temperature
  • 10°C to 30°C
  • Specimen Size
  • Max height 85mm, depth 95mm
  • Max Height
  • 85 mm
  • Automation Grade
  • Semi-automatic
  • Response Time
  • Immediate
  • Display Type
  • LCD digital display
  • Measuring Range
  • 8HV – 2900HV
  • Application
  • Micro hardness measurement of metals and alloy materials, research labs, quality control
  • Equipment Type
  • Micro Vickers Hardness Tester
  • Interface Type
  • RS232/USB (optional)
  • Dimension (L*W*H)
  • 530X200X530 Millimeter (mm)
  • Accuracy
  • ± 1.5%
  • Test Range
  • 5gf - 1000gf
  • Features
  • Auto turret, data output, accurate load application, optical microscope
  • Resolution
  • 0.025 μm
  • Number of Specimens
  • Single specimen at a time
  • Humidity
  • ≤85% RH
  • Operating Voltage
  • AC220V/110V, 50/60Hz
  • Hardness
  • Micro Vickers (HV)
  • Mounting Type
  • Bench-top
  • Usage
  • Microhardness testing
  • Machine Weight
  • 35 Kilograms (kg)
  • Control Mode
  • Manual/Automatic


Micro Vickers Hardness Tester (HT-1000) Trade Information

  • Minimum Order Quantity
  • 1 Number
  • Payment Terms
  • Cheque, Telegraphic Transfer (T/T)
  • Supply Ability
  • 1 Number Per Day
  • Delivery Time
  • 1 Week
  • Main Domestic Market
  • All India


About Micro Vickers Hardness Tester (HT-1000)

Features

MANUAL EYEPIECE :Equipped with 10x Manual Eyepiece to measure the length of diagonal. The hardness value can be displayed directly on LCD screen by entering the indentation diagonal length.

CAMERA PORT :Machine equipped with dual optical channel, one optical channel for 10X eyepiece and another optical channel is for camera by which machine can be upgraded into computerized model. Both optical channel works simultaneously.

ILLUMINATION SYSTEM :Halogen illumination unit gives very clear images and can be also used as a simple microscope. Halogen illumination unit enter stand by mode after a certain period of inactivity which gives it a long service life and low power consumption.

TEST FORCE :Wide range of test fore (10gm to 1000gm) can be selected with external force selection knob. The test force is automatically displayed on the LCD display.

TURRET MECHANISM :Equipped with manual turret mechanism. The position of the indentor and objective lens can be switched manually.

Z-AXIS LIFTING SYSTEM :Side-Ways lifting system makes the z-axis movement more stable and accurate.

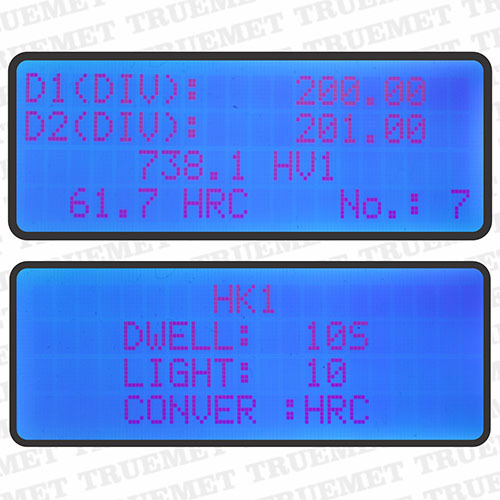

LCD SCREEN :80X25mm LCD Screen can visually display the hardness value, conversion hardness, test force and dwell time.

EMERGENCY SWITCH :Equipped with emergency stop switch.



High-Precision Microhardness Testing

Engineered for reliable microhardness testing, the HT-1000 offers unmatched accuracy and range for metals and alloys. With automatic load application and an advanced optical system, it delivers immediate and consistent results for research and industrial needs.


Versatile Observation and Measurement Options

The tester includes two objective lenses (10X, 40X) enabling observation at 100X and measurement at 400X. The XY test table offers a 25 mm x 25 mm movement range and supports precise positioning for single specimens up to 85 mm in height.


User-Friendly Features and Data Output

From its easy-to-navigate LCD digital display to its seamless RS232/USB connectivity for data export, the HT-1000 combines convenience with advanced performance. The semi-automatic, bench-top design ensures both efficiency and operational safety.

FAQs of Micro Vickers Hardness Tester (HT-1000):


Q: How does the Micro Vickers Hardness Tester (HT-1000) perform hardness measurements?

A: The HT-1000 uses a Vickers diamond pyramid indenter to apply controlled loads (5gf1000gf) onto the material specimen. Under magnification, it measures the indentation diagonals, and the hardness value is calculated immediately, displayed on the digital LCD with high precision.

Q: What specimen sizes and materials can be tested with this equipment?

A: This tester accommodates single specimens up to 85 mm in height and 95 mm in depth, making it suitable for a wide range of metals and alloys. Its ideal for research labs and quality control departments needing microhardness analysis.

Q: When should I use the 100X and 400X microscope magnifications?

A: The 100X setting (with the 10X objective lens) is used for specimen observation and alignment, while the 400X magnification (using the 40X objective lens) is selected for precise measurement of the indentation after testing.

Q: Where is the HT-1000 Micro Vickers Hardness Tester typically installed?

A: Designed as a semi-automatic, bench-top model, the HT-1000 is suitable for installation in laboratories, quality assurance areas of manufacturing plants, and research facilities worldwide, particularly where precise microhardness measurement is needed.

Q: What is the process for operating the Micro Vickers Hardness Tester?

A: After placing the specimen on the test table, select the desired load and focus using the microscope. The indenter applies pressure on the material, and the system automatically or manually measures the indentation via the LCD display. Data can be exported through RS232/USB ports as required.

Q: What benefits does the HT-1000 offer compared to other hardness testers?

A: This model ensures accurate load application, superior measurement resolution (0.025 m), and quick result display. Its robust cast iron build, auto turret, and advanced optical features make it a reliable choice, delivering both long-term durability and laboratory-grade performance.
